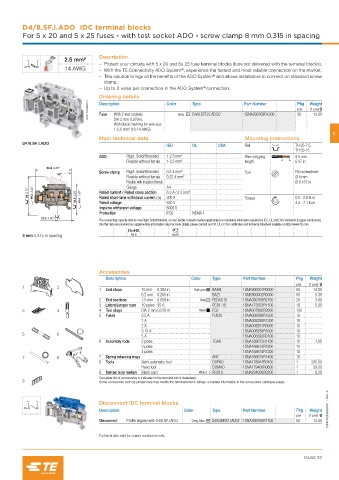

D4/8.SF.I.ADO IDC terminal blocks
For 5 x 20 and 5 x 25 fuses - with test socket ADO - screw clamp 8 mm 0.315 in spacing

Description
2.5 mm²
– Protect your circuits with 5 x 20 and 5x 25 fuse terminal blocks (fuse not delivered with the terminal blocks),
14 AWG – With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
– This solution brings all the benefits of the ADO System and allows installators to connect on standard screw
®
clamp,
®
– Up to 2 wires per connection in the ADO System connection.
Ordering details
1SNC163139F0014 Description Color Grey Type Part Number Pkg Weight
(1 pce) g
pce
1SNA399762R1300
D4/8.SFT2.I.ADO2
With 2 test sockets
50
13.00
Fuse
DIA 2 mm 0.079 in,
With black marking for wire size
1-2.5 mm² (16-14 AWG)
2
Main technical data Mounting instructions
D4/8.SF.I.ADO
IEC UL CSA Rail TH 35-7.5,
TH 35-15
ADO Rigid: Solid/Stranded 1-2.5 mm² Wire stripping 9.5 mm
Flexible without ferrule 1-2.5 mm² length 0.37 in
68.2 2.68"
Screw clamp Rigid: Solid/Stranded 0.2-4 mm² Tool Flat screwdriver
180°
Flexible without ferrule 0.22-4 mm² Ø 4 mm
Flexible with insulated ferrule A4 Ø 0.157 in
Gauge
94 3.70" 86.5 3.40" 55.9 2.20" 48.4 1.90" Rated current / Rated cross section 6.3 A / 2.5 mm² Torque 0.5 - 0.8 N.m
300 A
Rated short-time withstand current (1s)
Rated voltage
Impulse withstand voltage 630 V 4.4 - 7.1 lb.in
8000 V
Protection IP20 NEMA 1
25.5 1.00"
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
8 mm 0.315 in spacing RoHS Gost R
Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 1.5 mm 0.059 in Grey FEDAD10 1SNA399758R2700 20 3.00
3 Lateral jumper bars 10 poles 35 A PC81-10 1SNA173523R1100 10 5.00
3 4 4 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
5 Fuses 0.5 A FU520 1SNA008288R1500 10
1 A 1SNA008290R1300 10
2 A 1SNA008291R0000 10
3.15 A 1SNA008289R1600 10
5 6
5 A 1SNA008292R0100 10
6 Assembly rods 2 poles TGA8 1SNA168672R1100 10 1.00
3 poles 1SNA168673R1200 10
4 poles 1SNA168674R1300 10
7 8 7 Spring retaining rings ANT 1SNA168675R1400 10
8 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
9 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
9 Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC163022S0201 - Rev. A
Disconnect IDC terminal blocks
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Disconnect Profile aligned with D4/8.SF.I.ADO Grey, blue D4/8.SNNT2.I.ADO2 1SNA399766R1700 50 13.00

Technical data valid for copper conductors only.
