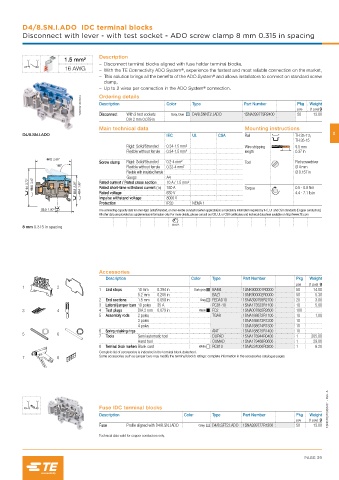

Page 331 - Entrelec Terminal Blocks Master Catalog

D4/8.SN.I.ADO IDC terminal blocks
Disconnect with lever - with test socket - ADO screw clamp 8 mm 0.315 in spacing

Description
1.5 mm²
– Disconnect terminal blocks aligned with fuse holder terminal blocks,
16 AWG – With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
– This solution brings all the benefits of the ADO System and allows installators to connect on standard screw
®
clamp,
®
– Up to 2 wires per connection in the ADO System connection.
Ordering details
1SNC163120F0014 Description Color Type Part Number Pkg Weight
(1 pce) g
pce
Disconnect
With 2 test sockets
DIA 2 mm 0.079 in Grey, blue D4/8.SNNT2.I.ADO 1SNA399779R2400 50 13.00
Main technical data Mounting instructions
2
D4/8.SN.I.ADO IEC UL CSA Rail TH 35-7.5,
TH 35-15
Rigid: Solid/Stranded 0.34-1.5 mm² Wire stripping 9.5 mm
Flexible without ferrule 0.34-1.5 mm² length 0.37 in
68.2 2.68"
Screw clamp Rigid: Solid/Stranded 0.2-4 mm² Tool Flat screwdriver
180°
Flexible without ferrule 0.22-4 mm² Ø 4 mm
Flexible with insulated ferrule Ø 0.157 in
Gauge A4
94 3.70" 86.5 3.40" 55.9 2.20" 48.4 1.90" Rated current / Rated cross section 10 A / 1.5 mm² Torque 0.5 - 0.8 Nm
180 A
Rated short-time withstand current (1s)
Rated voltage
Impulse withstand voltage 630 V 4.4 - 7.1 lb.in
8000 V
Protection IP20 NEMA 1
25.5 1.00" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
Gost R
8 mm 0.315 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 1.5 mm 0.059 in Grey FEDAD10 1SNA399758R2700 20 3.00
3 Lateral jumper bars 10 poles 35 A PC81-10 1SNA173523R1100 10 5.00
3 4 4 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
5 Assembly rods 2 poles TGA8 1SNA168672R1100 10 1.00
3 poles 1SNA168673R1200 10
4 poles 1SNA168674R1300 10
6 Spring retaining rings ANT 1SNA168675R1400 10
5 6
7 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
8 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
7 8 Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC163100S0201 - Rev. A

Fuse IDC terminal blocks
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Fuse Profile aligned with D4/8.SN.I.ADO Grey D4/8.SFT2.I.ADO 1SNA399777R1200 50 13.00
Technical data valid for copper conductors only.

PAGE 39
