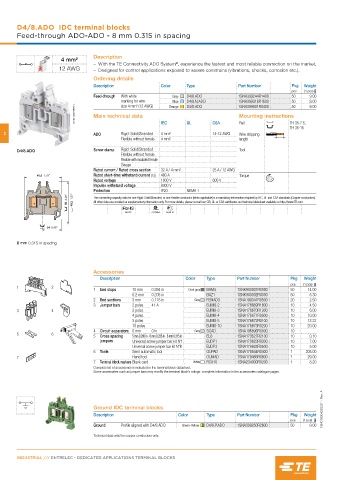

Page 336 - Entrelec Terminal Blocks Master Catalog

D4/8.ADO IDC terminal blocks
Feed-through ADO-ADO - 8 mm 0.315 in spacing

Description
4 mm²
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
12 AWG – Designed for control applications exposed to severe constrains (vibrations, shocks, corrosion etc.).
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Feed-through With white Grey D4/8.ADO 1SNA399244R1400 50 9.00
marking for wire Orange D4/8.N.ADO 1SNA399318R1600 50 9.00
Blue
1SNC163075F0014 Main technical data Mounting instructions
size 4 mm² (12 AWG)
1SNA399801R0400
D4/8.ADO
50
9.00
Rail
IEC
CSA
TH 35-7.5,
UL
TH 35-15
2 ADO Rigid: Solid/Stranded 4 mm² 14-12 AWG Wire stripping
Flexible without ferrule 4 mm² length
D4/8.ADO Screw clamp Rigid: Solid/Stranded Tool
Flexible without ferrule
Flexible with insulated ferrule
Gauge
Rated current / Rated cross section 32 A / 4 mm² 25 A / 12 AWG
45.5 1.79" Rated short-time withstand current (1s) 480 A Torque
Rated voltage 1000 V 600 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
56 2.20" 48.5 1.91" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
C US
RoHS cCSAus Gost R
24 0.95"
8 mm 0.315 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 3 mm 0.118 in Grey FEMAD3 1SNA199341R0500 20 2.50
3 Jumper bars 2 poles 41 A BJMI8-2 1SNA176669R1600 10 4.50
3 4 3 poles BJMI8-3 1SNA176670R1300 10 6.00
4 poles BJMI8-4 1SNA176671R0000 10 10.00
5 poles BJMI8-5 1SNA176672R0100 10 12.22
10 poles BJMI8-10 1SNA176673R0200 10 20.00
4 Circuit separators 0 mm 0 in Grey SCAD 1SNA196896R0000 10
5 6
5 Cross spacing 5 mm 0.200 in - 6 mm 0.236 in - 8 mm 0.315 in EL6 1SNA173627R2100 10 0.10
jumpers Universal screw jumper bar kit N°I BJDP1 1SNA179623R0300 10 7.00
Universal screw jumper bar kit N°III BJDP3 1SNA179625R0500 10 5.00
6 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
7 Hand tool OUMAD 1SNA179466R0600 1 29.00
7 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC163042S0201 - Rev. A

Ground IDC terminal blocks
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Ground Profile aligned with D4/8.ADO Green-Yellow D4/8.P.ADO 1SNA399250R2600 50 9.00
Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - DEDICATED APPLICATIONS TERMINAL BLOCKS
