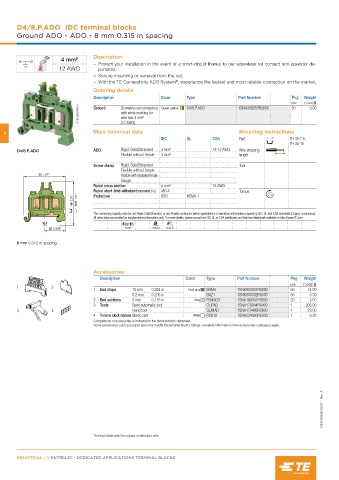

Page 340 - Entrelec Terminal Blocks Master Catalog

D4/8.P.ADO IDC terminal blocks
Ground ADO - ADO - 8 mm 0.315 in spacing

Description
4 mm²
– Protect your installation in the event of a short-circuit thanks to our screwless rail contact non operator de-
12 AWG pendent,
– Secure mounting or removal from the rail,
®
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1SNC163097F0014 with white marking for
Ground
D4/8.P.ADO
1SNA399250R2600
9.00
50
Screwless rail connection, Green-yellow
wire size 4 mm²
(12 AWG)
2 Main technical data Mounting instructions
IEC UL CSA Rail TH 35-7.5,
TH 35-15
D4/8.P.ADO ADO Rigid: Solid/Stranded 4 mm² 14-12 AWG Wire stripping
Flexible without ferrule 4 mm² length
Screw clamp Rigid: Solid/Stranded Tool
Flexible without ferrule
50 1.97" Flexible with insulated ferrule
Gauge
Rated cross section 4 mm² 12 AWG
Rated short-time withstand current (1s) 480 A Torque
56 2.20" 48.5 1.91" Protection IP20 NEMA 1

The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
C US
25 0.984" RoHS cCSAus Gost R

8 mm 0.315 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 3 mm 0.118 in Grey FEMAD3 1SNA199341R0500 20 2.50
3 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
3 4 Hand tool OUMAD 1SNA179466R0600 1 29.00
4 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC163051S0201 - Rev. A

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - DEDICATED APPLICATIONS TERMINAL BLOCKS
