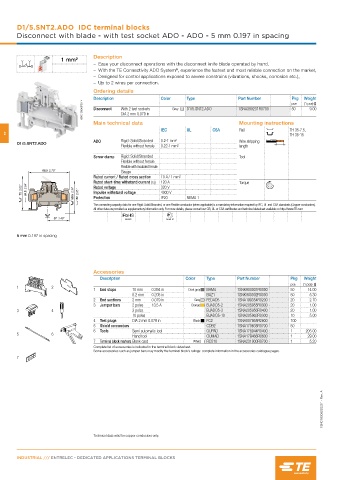

Page 342 - Entrelec Terminal Blocks Master Catalog

D1/5.SNT2.ADO IDC terminal blocks
Disconnect with blade - with test socket ADO - ADO - 5 mm 0.197 in spacing

Description
1 mm²
– Ease your disconnect operations with the disconnect knife blade operated by hand,
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
– Designed for control applications exposed to severe constrains (vibrations, shocks, corrosion etc.),
– Up to 2 wires per connection.
Ordering details
Description Color Type Part Number Pkg Weight
1SNC163042F0014 Disconnect With 2 test sockets Grey D1/5.SNT2.ADO 1SNA399231R0700 50 9.00
(1 pce) g
pce
DIA 2 mm 0.079 in
Main technical data Mounting instructions
IEC UL CSA Rail TH 35-7.5,
2 TH 35-15
ADO Rigid: Solid/Stranded 0.2-1 mm² Wire stripping
D1/5.SNT2.ADO
Flexible without ferrule 0.22-1 mm² length
Screw clamp Rigid: Solid/Stranded Tool
Flexible without ferrule
Flexible with insulated ferrule
68.5 2.70" Gauge
Rated current / Rated cross section 10 A / 1 mm²
Rated short-time withstand current (1s) 120 A Torque
72 2.83" 64.5 2.54" 59.5 2.34" 52 2.05" Rated voltage 320 V NEMA 1
4000 V
Impulse withstand voltage
Protection
IP20
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
37 1.46"
RoHS Gost R
5 mm 0.197 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2 mm 0.079 in Grey FEDAD5 1SNA199354R0200 20 2.70
3 Jumper bars 2 poles 13.5 A Orange BJADO5-2 1SNA205955R0300 20 1.00
3 4 3 poles BJADO5-3 1SNA205956R0400 20 1.00
10 poles BJADO5-10 1SNA205963R0300 10 5.00
4 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
5 Shield connectors CDB2 1SNA179635R0700 50
6 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
5 6
Hand tool OUMAD 1SNA179466R0600 1 29.00
7 Terminal block markers Blank card White RC510 1SNA231000R0700 1 5.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
7

1SNC163052S0201 - Rev. A

Technical data valid for copper conductors only.
