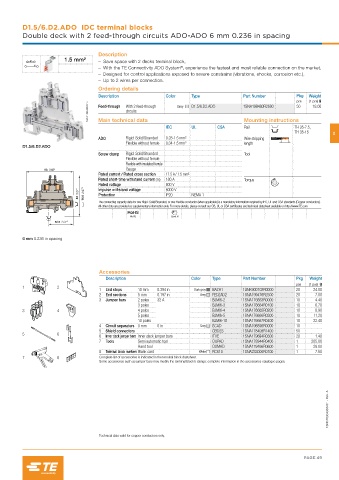

D1.5/6.D2.ADO IDC terminal blocks
Double deck with 2 feed-through circuits ADO-ADO 6 mm 0.236 in spacing

Description
1.5 mm² – Save space with 2 decks terminal block,
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
– Designed for control applications exposed to severe constrains (vibrations, shocks, corrosion etc.),
– Up to 2 wires per connection.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1SNC163040F0014 circuits
Grey
50
Feed-through
18.00
D1.5/6.D2.ADO
1SNA199480R2600
With 2 feed-through
Main technical data
TH 35-7.5,
IEC UL CSA Mounting instructions
Rail
TH 35-15 2
ADO Rigid: Solid/Stranded 0.28-1.5 mm² Wire stripping
Flexible without ferrule 0.34-1.5 mm² length
D1.5/6.D2.ADO
Screw clamp Rigid: Solid/Stranded Tool
Flexible without ferrule
Flexible with insulated ferrule
93 3.66" Gauge
Rated current / Rated cross section 17.5 A / 1.5 mm²
Rated short-time withstand current (1s) 180 A Torque
Rated voltage 800 V
83 3.27" 75.5 2.97" Impulse withstand voltage 6000 V NEMA 1
Protection
IP20
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
RoHS Gost R
52.5 2.07"
6 mm 0.236 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 End sections 5 mm 0.197 in Grey FED2AD2 1SNA199476R2500 20 7.00
3 Jumper bars 2 poles 32 A BJMI6-2 1SNA176663R0000 10 4.40
3 poles BJMI6-3 1SNA176664R0100 10 6.70
3 4 4 poles BJMI6-4 1SNA176665R0200 10 8.90
5 poles BJMI6-5 1SNA176666R0300 10 11.20
10 poles BJMI6-10 1SNA176667R0400 10 22.40
4 Circuit separators 0 mm 0 in Grey SCAD 1SNA196896R0000 10
5 Shield connectors CBD2S 1SNA178408R1400 50
5 6
6 Inner deck jumper bars Inner deck jumper bars ITVE 1SNA179694R0300 20 1.40
7 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
8 Terminal block markers Blank card White RC610 1SNA233000R0100 1 7.50
7 8 Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC163043S0201 - Rev. A

Technical data valid for copper conductors only.

PAGE 49
