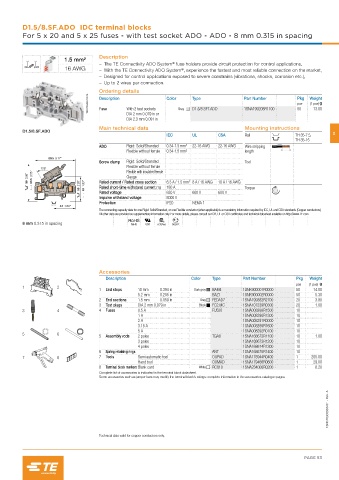

D1.5/8.SF.ADO IDC terminal blocks
For 5 x 20 and 5 x 25 fuses - with test socket ADO - ADO - 8 mm 0.315 in spacing

Description
1.5 mm²
®
– The TE Connectivity ADO System fuse holders provide circuit protection for control applications,
16 AWG – With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
– Designed for control applications exposed to severe constrains (vibrations, shocks, corrosion etc.),
– Up to 2 wires per connection.
Ordering details
1SNC163092F0014 Description With 2 test sockets Color Grey Type Part Number Pkg Weight
(1 pce) g
pce
Fuse
D1.5/8.SFT.ADO
1SNA199208R1100
50
13.00
DIA 2 mm 0.079 in or
DIA 2.3 mm 0.091 in
Main technical data Mounting instructions
D1.5/8.SF.ADO
IEC UL CSA Rail TH 35-7.5, 2
TH 35-15
ADO Rigid: Solid/Stranded 0.34-1.5 mm² 22-16 AWG 22-16 AWG Wire stripping
Flexible without ferrule 0.34-1.5 mm² length
80.5 3.17"
Screw clamp Rigid: Solid/Stranded Tool
Flexible without ferrule
Flexible with insulated ferrule
98 3.86" 90.5 3.56" Rated current / Rated cross section 6.3 A / 1.5 mm² 8 A / 16 AWG 10 A / 16 AWG
Gauge
56 2.20" 49 1.93" Rated short-time withstand current (1s) 180 A Torque
Rated voltage 630 V 600 V 600 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
43 1.69"
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
C
US
8 mm 0.315 in spacing RoHS USR cCSAus Gost R

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 1.5 mm 0.059 in Grey FEDAD7 1SNA199382R2700 20 3.80
3 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
3 4 4 Fuses 0.5 A FU520 1SNA008288R1500 10
1 A 1SNA008290R1300 10
2 A 1SNA008291R0000 10
3.15 A 1SNA008289R1600 10
5 A 1SNA008292R0100 10
5 6
5 Assembly rods 2 poles TGA8 1SNA168672R1100 10 1.00
3 poles 1SNA168673R1200 10
4 poles 1SNA168674R1300 10
6 Spring retaining rings ANT 1SNA168675R1400 10
7 8 7 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
8 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC163056S0201 - Rev. A

Technical data valid for copper conductors only.
