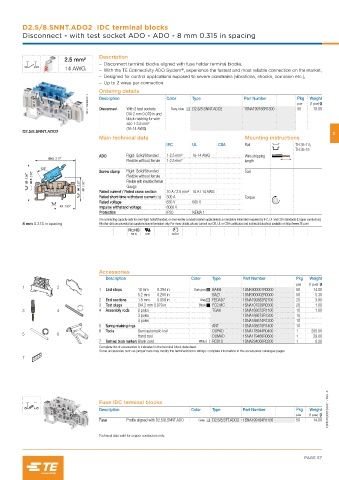

Page 349 - Entrelec Terminal Blocks Master Catalog

D2.5/8.SNNT.ADO2 IDC terminal blocks
Disconnect - with test socket ADO - ADO - 8 mm 0.315 in spacing

Description
2.5 mm²
– Disconnect terminal blocks aligned with fuse holder terminal blocks,
14 AWG – With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
– Designed for control applications exposed to severe constrains (vibrations, shocks, corrosion etc.),
– Up to 2 wires per connection.
Ordering details
1SNC163085F0014 Description With 2 test sockets Color Type Part Number Pkg Weight
(1 pce) g
pce
D2.5/8.SNNT.ADO2
Grey, blue
Disconnect
18.00
1SNA199186R1300
50
DIA 2 mm 0.079 in and
black marking for wire
size 1-2.5 mm²
(16-14 AWG)
D2.5/8.SNNT.ADO2 2
Main technical data Mounting instructions
IEC UL CSA Rail TH 35-7.5,
TH 35-15
ADO Rigid: Solid/Stranded 1-2.5 mm² 16-14 AWG Wire stripping
80.5 3.17"
Flexible without ferrule 1-2.5 mm² length
98 3.86" 90.5 3.56" Screw clamp Rigid: Solid/Stranded Tool
Flexible without ferrule
Flexible with insulated ferrule
56 2.20" 49 1.93" Gauge
Rated current / Rated cross section
300 A
Rated short-time withstand current (1s) 10 A / 2.5 mm² 10 A / 14 AWG Torque
Rated voltage 630 V 600 V
43 1.69" Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
8 mm 0.315 in spacing All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
RoHS USR Gost R

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 1.5 mm 0.059 in Grey FEDAD7 1SNA199382R2700 20 3.80
3 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
3 4 4 Assembly rods 2 poles TGA8 1SNA168672R1100 10 1.00
3 poles 1SNA168673R1200 10
4 poles 1SNA168674R1300 10
5 Spring retaining rings ANT 1SNA168675R1400 10
6 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
5 6
Hand tool OUMAD 1SNA179466R0600 1 29.00
7 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
7

Fuse IDC terminal blocks
Description Color Type Part Number Pkg Weight 1SNC163061S0201 - Rev. A
pce (1 pce) g
Fuse Profile aligned with D2.5/8.SNNT.ADO Grey D2.5/8.SFT.ADO2 1SNA199184R1100 50 14.00

Technical data valid for copper conductors only.
