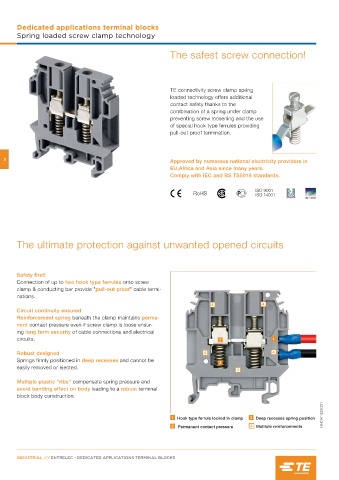

Page 352 - Entrelec Terminal Blocks Master Catalog

Dedicated applications terminal blocks
Spring loaded screw clamp technology

The safest screw connection!

TE connectivity screw clamp spring
loaded technology offers additional
contact safety thanks to the
combination of a spring under clamp
preventing screw loosening and the use
of special hook type ferrules providing
pull-out proof termination.

3
Approved by numerous national electricity providers in
EU,Africa and Asia since many years.
Comply with IEC and BS TS5018 standards.

ISO 9001
RoHS ISO 14001

The ultimate protection against unwanted opened circuits

Safety first!
Connection of up to two hook type ferrules onto screw
clamp & conducting bar provide "pull-out proof" cable termi-
nations.
4 4
Circuit continuity ensured
Reinforcement spring beneath the clamp maintains perma-
nent contact pressure even if screw clamp is loose ensur-
ing long term security of cable connections and electrical
circuits. 2 1

Robust designed 4 4
Springs firmly positioned in deep recesses and cannot be
3
easily removed or ejected.
4
Multiple plastic "ribs" compensate spring pressure and
avoid bending effect on body leading to a robust terminal
block body construction.
1SNC161122S0201

1 Hook type ferrule locked in clamp 3 Deep recesses spring position
2 Permanent contact pressure 4 Multiple reinforcements
