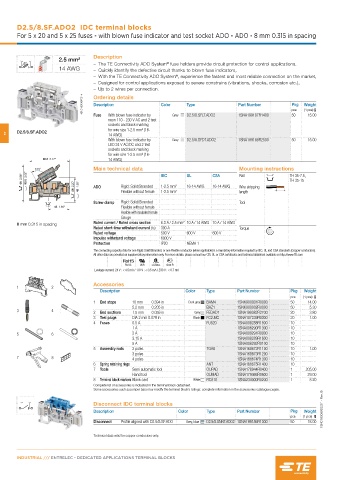

D2.5/8.SF.ADO2 IDC terminal blocks
For 5 x 20 and 5 x 25 fuses - with blown fuse indicator and test socket ADO - ADO - 8 mm 0.315 in spacing

Description
2.5 mm²
®
– The TE Connectivity ADO System fuse holders provide circuit protection for control applications,
14 AWG – Quickly identify the defective circuit thanks to blown fuse indicators,
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
– Designed for control applications exposed to severe constrains (vibrations, shocks, corrosion etc.),
– Up to 2 wires per connection.
1SNC163045F0014 Ordering details Color Type Part Number Pkg Weight
Description
(1 pce) g
pce
Fuse With blown fuse indicator by Grey D2.5/8.SFLT.ADO2 1SNA199187R1400 50 15.00
neon 110 - 230 V AC and 2 test
sockets and black marking
for wire size 1-2.5 mm² (16-
2 D2.5/8.SF.ADO2
14 AWG)
With blown fuse indicator by Grey D2.5/8.SFDT.ADO2 1SNA199188R2500 50 15.00
LED 24 V AC/DC and 2 test
sockets and black marking
for wire size 1-2.5 mm² (16-
80.5 3.17" 14 AWG)
Main technical data Mounting instructions
98 3.86" 90.5 3.56" IEC UL CSA Rail TH 35-7.5,
TH 35-15
56 2.20" 49 1.93" ADO Rigid: Solid/Stranded 1-2.5 mm² 16-14 AWG 16-14 AWG Wire stripping
1-2.5 mm²
Flexible without ferrule
length
Screw clamp Rigid: Solid/Stranded Tool
43 1.69" Flexible without ferrule
Flexible with insulated ferrule
Gauge
8 mm 0.315 in spacing Rated current / Rated cross section 6.3 A / 2.5 mm² 10 A / 14 AWG 10 A / 14 AWG
Rated short-time withstand current (1s) 300 A Torque
Rated voltage 500 V 600 V 600 V
Impulse withstand voltage 6000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
C US
RoHS USR cCSAus Gost R
Leakage current: 24 V : < 4.5 mA / 110 V : < 0.5 mA / 230 V : < 0.7 mA

Accessories
1 2
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
3 4
2 End sections 1.5 mm 0.059 in Grey FEDAD7 1SNA199382R2700 20 3.80
3 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
4 Fuses 0.5 A FU520 1SNA008288R1500 10
1 A 1SNA008290R1300 10
5 6 2 A 1SNA008291R0000 10
3.15 A 1SNA008289R1600 10
5 A 1SNA008292R0100 10
5 Assembly rods 2 poles TGA8 1SNA168672R1100 10 1.00
3 poles 1SNA168673R1200 10
7 8 4 poles 1SNA168674R1300 10
6 Spring retaining rings ANT 1SNA168675R1400 10
7 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
8 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC163059S0201 - Rev. B
Disconnect IDC terminal blocks
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Disconnect Profile aligned with D2.5/8.SF.ADO Grey, blue D2.5/8.SNNT.ADO2 1SNA199186R1300 50 18.00

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - DEDICATED APPLICATIONS TERMINAL BLOCKS
