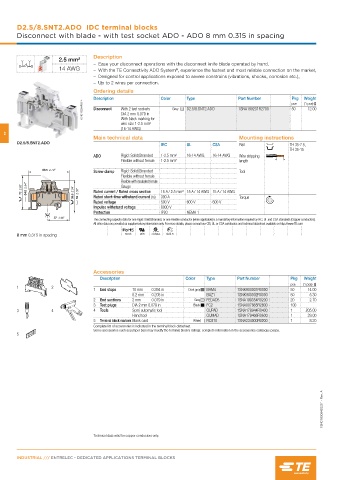

Page 344 - Entrelec Terminal Blocks Master Catalog

D2.5/8.SNT2.ADO IDC terminal blocks
Disconnect with blade - with test socket ADO - ADO 8 mm 0.315 in spacing

Description
2.5 mm²
– Ease your disconnect operations with the disconnect knife blade operated by hand,
14 AWG – With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
– Designed for control applications exposed to severe constrains (vibrations, shocks, corrosion etc.),
– Up to 2 wires per connection.
Ordering details
Description Color Type Part Number Pkg Weight
1SNC163091F0014 Disconnect With 2 test sockets Grey D2.5/8.SNT2.ADO 1SNA199231R2700 50 12.00
(1 pce) g
pce
DIA 2 mm 0.079 in
With black marking for
wire size 1-2.5 mm²
(16-14 AWG)
2
Main technical data Mounting instructions
D2.5/8.SNT2.ADO
IEC UL CSA Rail TH 35-7.5,
TH 35-15
ADO Rigid: Solid/Stranded 1-2.5 mm² 16-14 AWG 16-14 AWG Wire stripping
Flexible without ferrule 1-2.5 mm² length
68.5 2.70"
Screw clamp Rigid: Solid/Stranded Tool
Flexible without ferrule
Flexible with insulated ferrule
72 2.83" 64.5 2.54" 59.5 2.34" 52 2.05" Rated current / Rated cross section 15 A / 2.5 mm² 15 A / 14 AWG 15 A / 14 AWG
Gauge
Rated short-time withstand current (1s)
Rated voltage 300 A 600 V 600 V Torque
500 V
Impulse withstand voltage 6000 V
Protection IP20 NEMA 1
37 1.46"
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
C US
8 mm 0.315 in spacing RoHS USR cCSAus Gost R

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2 mm 0.079 in Grey FEDAD5 1SNA199354R0200 20 2.70
3 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
3 4 4 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
5 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
5

1SNC163054S0201 - Rev. A

Technical data valid for copper conductors only.
