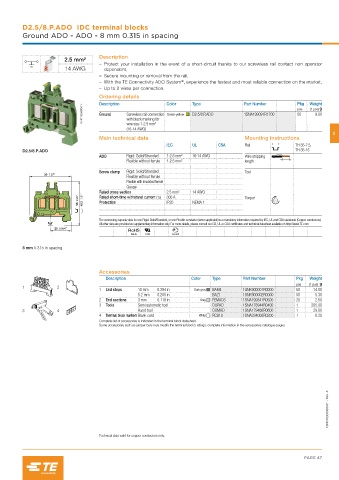

Page 339 - Entrelec Terminal Blocks Master Catalog

D2.5/8.P.ADO IDC terminal blocks
Ground ADO - ADO - 8 mm 0.315 in spacing

Description
2.5 mm²
– Protect your installation in the event of a short-circuit thanks to our screwless rail contact non operator
14 AWG dependent,
– Secure mounting or removal from the rail,
®
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
– Up to 2 wires per connection.
Ordering details Color Type Part Number Pkg Weight
Description
1SNC163088F0014 Ground Screwless rail connection Green-yellow D2.5/8.P.ADO 1SNA199091R1700 pce (1 pce) g
9.00
50
with black marking for
wire size 1-2.5 mm²
(16-14 AWG)
2
Main technical data Mounting instructions
IEC UL CSA Rail TH 35-7.5,
D2.5/8.P.ADO TH 35-15
ADO Rigid: Solid/Stranded 1-2.5 mm² 16-14 AWG Wire stripping
Flexible without ferrule 1-2.5 mm² length
Screw clamp Rigid: Solid/Stranded Tool
50 1.97"
Flexible without ferrule
Flexible with insulated ferrule
Gauge
Rated cross section 2.5 mm² 14 AWG
56 2.20" 48.5 1.91" Rated short-time withstand current (1s) 300 A NEMA 1 Torque
Protection
IP20

The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
25 0.984"
RoHS USR Gost R

8 mm 0.315 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 3 mm 0.118 in Grey FEMAD3 1SNA199341R0500 20 2.50
3 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
3 4 Hand tool OUMAD 1SNA179466R0600 1 29.00
4 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC163050S0201 - Rev. A

Technical data valid for copper conductors only.
