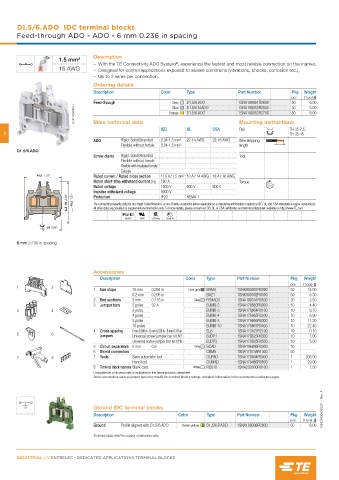

Page 334 - Entrelec Terminal Blocks Master Catalog

D1.5/6.ADO IDC terminal blocks
Feed-through ADO - ADO - 6 mm 0.236 in spacing

Description
1.5 mm²
®
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
16 AWG – Designed for control applications exposed to severe constrains (vibrations, shocks, corrosion etc.),
– Up to 2 wires per connection.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Feed-through Grey D1.5/6.ADO 1SNA199051R2600 50 6.00
1SNC163063F0014 Orange D1.5/6.ADO 1SNA199052R2700 50 6.00
Blue
D1.5/6.N.ADO
1SNA199053R2000
6.00
50
Main technical data
Rail
IEC UL CSA Mounting instructions
TH 35-7.5,
2 TH 35-15
ADO Rigid: Solid/Stranded 0.34-1.5 mm² 22-14 AWG 22-16 AWG Wire stripping
Flexible without ferrule 0.34-1.5 mm² length
D1.5/6.ADO
Screw clamp Rigid: Solid/Stranded Tool
Flexible without ferrule
Flexible with insulated ferrule
Gauge
45.5 1.79" Rated current / Rated cross section 17.5 A / 1.5 mm² 10 A / 14 AWG 18 A / 16 AWG
Rated short-time withstand current (1s) 180 A Torque
Rated voltage 1000 V 600 V 600 V
Impulse withstand voltage 8000 V
56 2.20" 48.5 1.91" Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
C US
RoHS USR cCSAus Gost R
24 0.95"

6 mm 0.236 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 3 mm 0.118 in Grey FEMAD3 1SNA199341R0500 20 2.50
3 Jumper bars 2 poles 32 A BJMI6-2 1SNA176663R0000 10 4.40
3 4 3 poles BJMI6-3 1SNA176664R0100 10 6.70
4 poles BJMI6-4 1SNA176665R0200 10 8.90
5 poles BJMI6-5 1SNA176666R0300 10 11.20
10 poles BJMI6-10 1SNA176667R0400 10 22.40
4 Cross spacing 5 mm 0.200 in - 6 mm 0.236 in - 8 mm 0.315 in EL6 1SNA173627R2100 10 0.10
5 6
jumpers Universal screw jumper bar kit N°I BJDP1 1SNA179623R0300 10 7.00
Universal screw jumper bar kit N°III BJDP3 1SNA179625R0500 10 5.00
5 Circuit separators 0 mm 0 in Grey SCAD 1SNA196896R0000 10
6 Shield connectors CBM5 1SNA178745R1400 50
7 8 7 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
8 Terminal block markers Blank card White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC163040S0201 - Rev. A

Ground IDC terminal blocks
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Ground Profile aligned with D1.5/6.ADO Green-yellow D1.5/6.P.ADO 1SNA199098R2600 50 6.00
Technical data valid for copper conductors only.
