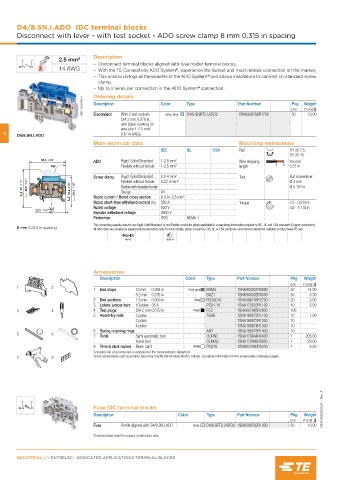

Page 332 - Entrelec Terminal Blocks Master Catalog

D4/8.SN.I.ADO IDC terminal blocks
Disconnect with lever - with test socket - ADO screw clamp 8 mm 0.315 in spacing

Description
2.5 mm²
– Disconnect terminal blocks aligned with fuse holder terminal blocks,
14 AWG – With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
®
– This solution brings all the benefits of the ADO System and allows installators to connect on standard screw
clamp,
– Up to 2 wires per connection in the ADO System connection.
®
Ordering details
1SNC163124F0014 Description Color Type Part Number Pkg Weight
(1 pce) g
pce
Disconnect
With 2 test sockets
DIA 2 mm 0.079 in, Grey, blue D4/8.SNNT2.I.ADO2 1SNA399766R1700 50 13.00
with black marking for
wire size 1-2.5 mm²
2 (16-14 AWG)
D4/8.SN.I.ADO
Main technical data Mounting instructions
IEC UL CSA Rail TH 35-7.5,
TH 35-15
68.2 2.68"
ADO Rigid: Solid/Stranded 1-2.5 mm² Wire stripping 9.5 mm
180° Flexible without ferrule 1-2.5 mm² length 0.37 in
Screw clamp Rigid: Solid/Stranded 0.2-4 mm² Tool Flat screwdriver
94 3.70" 86.5 3.40" 55.9 2.20" 48.4 1.90" Flexible without ferrule 0.22-4 mm² Ø 4 mm
Ø 0.157 in
Flexible with insulated ferrule
Gauge
6.3 A / 2.5 mm²
Rated current / Rated cross section A4
Rated short-time withstand current (1s) 300 A Torque 0.5 - 0.8 N.m
Rated voltage 630 V 4.4 - 7.1 lb.in
25.5 1.00"
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
8 mm 0.315 in spacing
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
RoHS Gost R

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 1.5 mm 0.059 in Grey FEDAD10 1SNA399758R2700 20 3.00
3 Lateral jumper bars 10 poles 35 A PC81-10 1SNA173523R1100 10 5.00
3 4 4 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
5 Assembly rods 2 poles TGA8 1SNA168672R1100 10 1.00
3 poles 1SNA168673R1200 10
4 poles 1SNA168674R1300 10
6 Spring retaining rings ANT 1SNA168675R1400 10
5 6
7 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
8 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
7 8 Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC163025S0201 - Rev. A

Fuse IDC terminal blocks
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Fuse Profile aligned with D4/8.SN.I.ADO Grey D4/8.SFT2.I.ADO2 1SNA399762R1300 50 13.00
Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - DEDICATED APPLICATIONS TERMINAL BLOCKS
