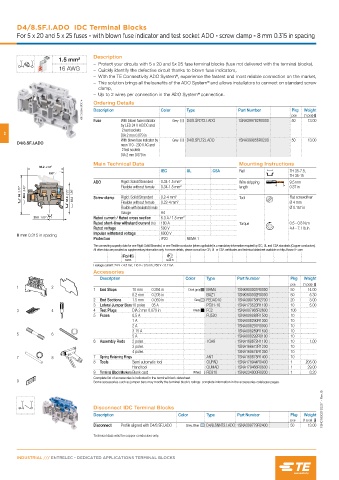

Page 328 - Entrelec Terminal Blocks Master Catalog

D4/8.SF.I.ADO IDC Terminal Blocks
For 5 x 20 and 5 x 25 fuses - with blown fuse indicator and test socket ADO - screw clamp - 8 mm 0.315 in spacing

Description
1.5 mm²
– Protect your circuits with 5 x 20 and 5x 25 fuse terminal blocks (fuse not delivered with the terminal blocks),
16 AWG – Quickly identify the defective circuit thanks to blown fuse indicators,
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
– This solution brings all the benefits of the ADO System and allows installators to connect on standard screw
®
clamp,
– Up to 2 wires per connection in the ADO System connection.
®
1SNC163110F0014 Ordering Details Color Type Part Number Pkg Weight
Description
(1 pce) g
pce
With blown fuse indicator
Fuse
by LED 24 V AC/DC and Grey D4/8.SFDT2.I.ADO 1SNA399782R0000 50 13.00
2 test sockets
2
DIA 2 mm 0.079 in
With blown fuse indicator by Grey D4/8.SFLT2.I.ADO 1SNA399856R0200 50 13.00
D4/8.SF.I.ADO
neon 110 - 230 V AC and
2 test sockets
DIA 2 mm 0.079 in
Main Technical Data Mounting Instructions
68.2 2.68"
IEC UL CSA Rail TH 35-7.5,
180°
TH 35-15
ADO Rigid: Solid/Stranded 0.34-1.5 mm² Wire stripping 9.5 mm
length
0.37 in
0.34-1.5 mm²
Flexible without ferrule
94 3.70" 86.5 3.40" 55.9 2.20" 48.4 1.90" Screw clamp Rigid: Solid/Stranded 0.2-4 mm² Tool Flat screwdriver
Flexible without ferrule
Flexible with insulated ferrule 0.22-4 mm² Ø 4 mm
Ø 0.157 in
Gauge A4
25.5 1.00" Rated current / Rated cross section 6.3 A / 1.5 mm²
Rated short-time withstand current (1s) 180 A Torque 0.5 - 0.8 N.m
Rated voltage 500 V 4.4 - 7.1 lb.in
Impulse withstand voltage 6000 V
8 mm 0.315 in spacing
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
RoHS Gost R
Leakage current: 24 V < 4.5 mA; 110 V < 0.5 mA; 230 V < 0.7 mA
Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End Stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End Sections 1.5 mm 0.059 in Grey FEDAD10 1SNA399758R2700 20 3.00
3 Lateral Jumper Bars10 poles 35 A PC81-10 1SNA173523R1100 10 5.00
3 4 4 Test Plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
5 Fuses 0.5 A FU520 1SNA008288R1500 10
1 A 1SNA008290R1300 10
2 A 1SNA008291R0000 10
3.15 A 1SNA008289R1600 10
5 6
5 A 1SNA008292R0100 10
6 Assembly Rods 2 poles TGA8 1SNA168672R1100 10 1.00
3 poles 1SNA168673R1200 10
4 poles 1SNA168674R1300 10
7 8 7 Spring Retaining Rings ANT 1SNA168675R1400 10
8 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
9 Terminal Block Markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
9 Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC163021S0201 - Rev. B
Disconnect IDC Terminal Blocks
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Disconnect Profile aligned with D4/8.SF.I.ADO Grey, Blue D4/8.SNNT2.I.ADO 1SNA399779R2400 50 13.00
Technical data valid for copper conductors only.
