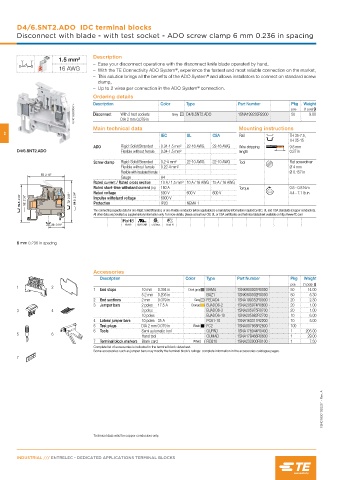

D4/6.SNT2.ADO IDC terminal blocks
Disconnect with blade - with test socket - ADO screw clamp 6 mm 0.236 in spacing

Description
1.5 mm²
– Ease your disconnect operations with the disconnect knife blade operated by hand,
16 AWG – With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
®
– This solution brings all the benefits of the ADO System and allows installators to connect on standard screw
clamp,
– Up to 2 wires per connection in the ADO System connection.
®
Ordering details Color Type Part Number Pkg Weight
Description
1SNC163033F0014 Disconnect With 2 test sockets Grey D4/6.SNT2.ADO 1SNA199235R2300 pce (1 pce) g
50
9.00
DIA 2 mm 0.079 in
Main technical data Mounting instructions
2
IEC UL CSA Rail TH 35-7.5,
TH 35-15
ADO Rigid: Solid/Stranded 0.34-1.5 mm² 22-16 AWG 22-16 AWG Wire stripping 9.5 mm
D4/6.SNT2.ADO Flexible without ferrule 0.34-1.5 mm² length 0.37 in
Screw clamp Rigid: Solid/Stranded 0.2-4 mm² 22-10 AWG 22-10 AWG Tool Flat screwdriver
Flexible without ferrule 0.22-4 mm² Ø 4 mm
Flexible with insulated ferrule Ø 0.157 in
55 2.16"
Gauge A4
Rated current / Rated cross section 10 A / 1.5 mm² 10 A / 16 AWG 15 A / 16 AWG
Rated short-time withstand current (1s) 180 A 600 V 600 V Torque 0.5 - 0.8 N.m
500 V
Rated voltage
4.4 - 7.1 lb.in
59.5 2.34" 52 2.05" 72 2.83" 64.5 2.54" Impulse withstand voltage 6000 V NEMA 1
Protection
IP20
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
C US
23 0.91" RoHS USR CNR cCSAus Gost R
6 mm 0.236 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2 mm 0.079 in Grey FEDAD4 1SNA199352R0000 20 2.30
3 Jumper bars 2 poles 17.5 A Orange BJADO6-2 1SNA205974R0600 20 1.00
3 4 3 poles BJADO6-3 1SNA205975R0700 20 1.00
10 poles BJADO6-10 1SNA205982R2700 10 6.00
4 Lateral jumper bars 10 poles 35 A PC61-10 1SNA163311R2200 10 5.00
5 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
6 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
5 6
Hand tool OUMAD 1SNA179466R0600 1 29.00
7 Terminal block markers Blank card White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
7

1SNC163016S0201 - Rev. A

Technical data valid for copper conductors only.
