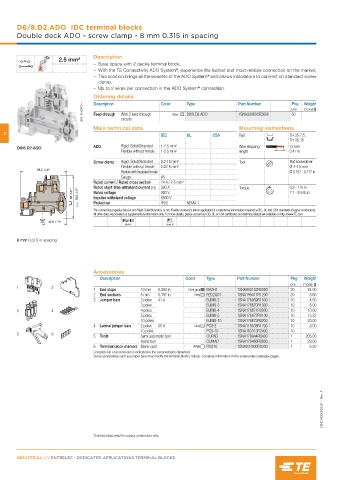

Page 320 - Entrelec Terminal Blocks Master Catalog

D6/8.D2.ADO IDC terminal blocks
Double deck ADO - screw clamp - 8 mm 0.315 in spacing

Description
2.5 mm²
– Save space with 2 decks terminal block,
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
– This solution brings all the benefits of the ADO System and allows installators to connect on standard screw
®
clamp,
– Up to 2 wires per connection in the ADO System connection.
®
Ordering details Color Type Part Number Pkg Weight
Description
1SNC163102F0014 Feed-through With 2 feed-through Grey D6/8.D2.ADO 1SNA399600R2600 pce (1 pce) g
50
circuits
Main technical data Mounting instructions
2
IEC UL CSA Rail TH 35-7.5,
TH 35-15
ADO Rigid: Solid/Stranded 1-2.5 mm² Wire stripping 12 mm
D6/8.D2.ADO
Flexible without ferrule 1-2.5 mm² length 0.47 in
Screw clamp Rigid: Solid/Stranded 0.2-10 mm² Tool Flat screwdriver
Flexible without ferrule 0.22-6 mm² Ø 4-4.5 mm
85.3 3.36"
Flexible with insulated ferrule Ø 0.157 - 0.177 in
Gauge A5
Rated current / Rated cross section 24 A / 2.5 mm² Torque 0.8 - 1 N.m
Rated short-time withstand current (1s)
300 A
83 3.27" 75.5 2.97" Rated voltage 800 V 7.1 - 8.9 lb.in
8000 V
Impulse withstand voltage
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
44.8 1.76"
RoHS Gost R
8 mm 0.315 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 End sections 5 mm 0.197 in Grey FED2AD1 1SNA199417R1200 20 6.60
3 Jumper bars 2 poles 41 A BJMI8-2 1SNA176669R1600 10 4.50
3 poles BJMI8-3 1SNA176670R1300 10 6.00
3 4 4 poles BJMI8-4 1SNA176671R0000 10 10.00
5 poles BJMI8-5 1SNA176672R0100 10 12.22
10 poles BJMI8-10 1SNA176673R0200 10 20.00
4 Lateral jumper bars 2 poles 50 A Grey PC8-2 1SNA116538R1700 10 3.00
10 poles PC8-10 1SNA163313R2400 10
5 6
5 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
6 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC163008S0201 - Rev. A

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - DEDICATED APPLICATIONS TERMINAL BLOCKS
