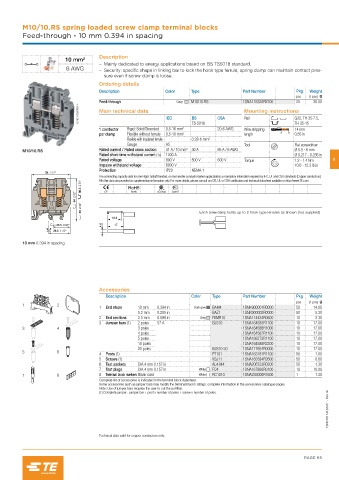

Page 357 - Entrelec Terminal Blocks Master Catalog

M10/10.RS spring loaded screw clamp terminal blocks
Feed-through - 10 mm 0.394 in spacing

Description
10 mm²
– Mainly dedicated to energy applications based on BS TS5018 standard,
6 AWG – Security: specific shape in linking bar to lock the hook type ferrule, spring clamp can maintain contact pres-
sure even if screw clamp is loose.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Feed-through Grey M10/10.RS 1SNA115320R2700 25 30.00
1SNC161090F0014 Main technical data IEC BS CSA Mounting instructions

Rail
G32, TH 35-7.5,
14 mm
1 conductor Rigid: Solid/Stranded 0.5-16 mm² TS 5018 20-6 AWG Wire stripping TH 35-15
per clamp Flexible without ferrule 0.5-10 mm² length 0.55 in
Flexible with insulated ferrule 0.28-6 mm²
Gauge A5 Tool Flat screwdriver
M10/10.RS Rated current / Rated cross section 41 A / 10 mm² 40 A 65 A / 6 AWG Ø 5.5 - 6 mm
Rated short-time withstand current (1s) 1200 A Ø 0.217 - 0.236 in
Rated voltage 800 V 500 V 600 V Torque 1.2 - 1.4 Nm 3
Impulse withstand voltage 8000 V 10.6 - 12.3 lb.in
Protection IP20 NEMA 1
54 2.12"
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
66.5 2.51" C US
64 2.52" CE RoHS cCSAus Gost R
59 2.32" Each screw clamp holds up to 2 hook type ferrules as shown (not supplied)

13.3
23.5 0.93" 4.6 17
28.5 1.12"

10 mm 0.394 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2.5 mm 0.098 in Grey FEMR10 1SNA114434R0500 10 3.30
3 Jumper bars (1) 2 poles 57 A BJS10 1SNA164585R1700 10 17.00
3 4 3 poles 1SNA164586R1000 10 17.00
4 poles 1SNA164587R1100 10 17.00
5 poles 1SNA168273R1100 10 17.00
10 poles 1SNA164588R2200 10 17.00
20 poles BJS10-20 1SNA177654R0000 10 17.00
5 6
4 Posts (1) PT101 1SNA163181R1100 50 1.00
5 Screws (1) VSJ11 1SNA163394R2600 50 0.60
6 Test sockets DIA 4 mm 0.157 in AL4-M4 1SNA206723R0300 50 1.30
7 Test plugs DIA 4 mm 0.157 in White FC4 1SNA167860R0100 10 10.00
7 8 8 Terminal block markers Blank card White RC1010 1SNA238000R1600 1 1.30
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
Note: Use of jumper bars requires the user to cut the partition.
1SNC161141S0201 - Rev. B
(1) Complete jumper : jumper bar + post x number of poles + screw x number of poles.

Technical data valid for copper conductors only.
