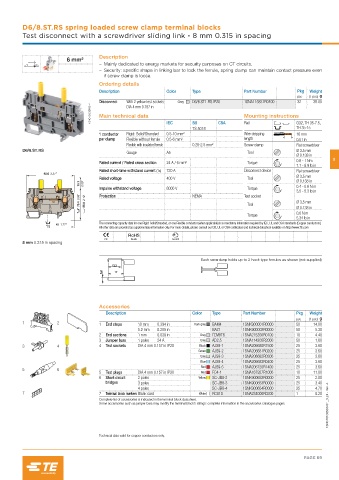

D6/8.ST.RS spring loaded screw clamp terminal blocks
Test disconnect with a screwdriver sliding link - 8 mm 0.315 in spacing

Description
6 mm²
– Mainly dedicated to energy markets for security purposes on CT circuits,
– Security: specific shape in linking bar to lock the ferrule, spring clamp can maintain contact pressure even
if screw clamp is loose.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Disconnect With 2 yellow test sockets Grey D6/8.ST1.RS.IP20 1SNA115831R0400 32 38.00
1SNC161233F0014 Main technical data Mounting instructions
DIA 4 mm 0.157 in

IEC
BS
TH 35-15
TS 5018 CSA Rail G32, TH 35-7.5,
1 conductor Rigid: Solid/Stranded 0.5-10 mm² Wire stripping 16 mm
per clamp Flexible without ferrule 0.5-6 mm² length 0.51 in
Flexible with insulated ferrule 0.28-2.5 mm² Screw clamp Flat screwdriver
D6/8.ST.RS Ø 3.5 mm
Gauge A5 Tool
Ø 0.138 in
0.8 - 1 Nm 3
Rated current / Rated cross section 24 A / 6 mm² Torque
7.1 - 8.9 lb.in
Rated short-time withstand current (1s) 720 A Disconnect device Flat screwdriver
85.6 3.37"
Rated voltage 400 V Tool Ø 3.5 mm
15.1 0.59" Ø 0.138 in
0.4 - 0.6 N.m
Impulse withstand voltage 6000 V Torque
3.5 - 5.3 lb.in
78.4 3.08" 55.8 2.19" Protection NEMA Test socket Ø 3.5 mm
Tool
Ø 0.138 in
0.6 N.m
Torque
5.34 lb.in
45 1.77" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE RoHS Gost R
8 mm 0.315 in spacing
Each screw clamp holds up to 2 hook type ferrules as shown (not supplied)

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2 1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 1 mm 0.039 in Grey FEM8T6 1SNA215266R0100 10 4.40
3 Jumper bars 1 poles 24 A Grey AD2.5 1SNA114205R2000 50 1.60
3 4 4 Test sockets DIA 4 mm 0.157 in IP20 Black AJS9-1 1SNA206680R1500 25 3.60
Green AJS9-2 1SNA206681R0200 25 3.60
Grey AJS9-3 1SNA206682R0300 25 3.60
Blue AJS9-4 1SNA206683R0400 25 3.60
Red AJS9-5 1SNA206720R1400 25 3.60
5 6
5 Test plugs DIA 4 mm 0.157 in IP20 Red FC4-1 1SNA167927R1000 10 11.00
6 Short circuit 2 poles Yellow SC-JB8-2 1SNK900652R0000 25 2.00
bridges 3 poles SC-JB8-3 1SNK900653R0000 25 3.40
1SNC161095S0201_dupli - Rev. A
4 poles SC-JB8-4 1SNK900654R0000 25 4.70
7 7 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

Technical data valid for copper conductors only.
