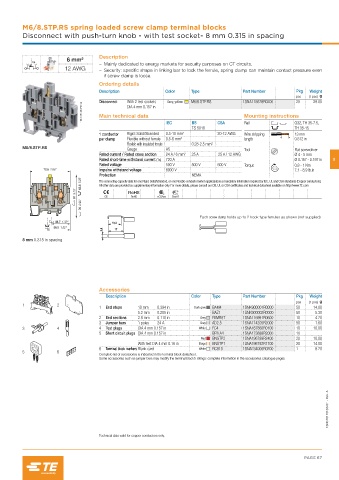

M6/8.STP.RS spring loaded screw clamp terminal blocks
Disconnect with push-turn knob - with test socket- 8 mm 0.315 in spacing

Description
6 mm²
1/4
– Mainly dedicated to energy markets for security purposes on CT circuits,
12 AWG – Security: specific shape in linking bar to lock the ferrule, spring clamp can maintain contact pressure even
if screw clamp is loose.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Disconnect With 2 test sockets Grey, yellow M6/8.STP.RS 1SNA115678R0200 25 29.00
1SNC161234F0014 Main technical data Mounting instructions
DIA 4 mm 0.157 in

IEC BS CSA Rail G32, TH 35-7.5,
TS 5018 TH 35-15
1 conductor Rigid: Solid/Stranded 0.5-10 mm² 20-12 AWG Wire stripping 13 mm
per clamp Flexible without ferrule 0.5-6 mm² length 0.512 in
Flexible with insulated ferrule 0.28-2.5 mm²
M6/8.STP.RS
Gauge A5 Tool Flat screwdriver
Rated current / Rated cross section 24 A / 6 mm² 25 A 25 A / 12 AWG Ø 4 - 5 mm
Rated short-time withstand current (1s) 720 A Ø 0.157 - 0.197 in 3
Rated voltage 500 V 500 V 600 V Torque 0.8 - 1 Nm
72.5 2.85" Impulse withstand voltage 6000 V 7.1 - 8.9 lb.in
Protection NEMA
83.5 3.29" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
81 3.19" CE RoHS cCSAus Gost R
C
US
76 2.99"

Each screw clamp holds up to 2 hook type ferrules as shown (not supplied)
33.7 1.33"
38.5 1.52"
8 mm 0.315 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2.8 mm 0.110 in Grey FEMR8T 1SNA116991R0600 10 4.70
3 Jumper bars 1 poles 24 A Grey AD2.5 1SNA114205R2000 50 1.60
3 4 4 Test plugs DIA 4 mm 0.157 in White FC4 1SNA167860R0100 10 10.00
5 Short circuit plugs DIA 4 mm 0.157 in BP8.A4 1SNA173888R2000 10
Red BNSTP2 1SNA196789R2400 20 10.00
With test DIA 4 mm 0.16 in Beige BNSTP1 1SNA196792R1700 20 14.00
6 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
5 6
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC161151S0201 - Rev. A

Technical data valid for copper conductors only.
