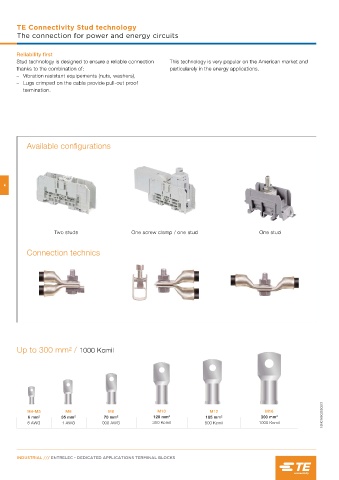

TE Connectivity Stud technology
       The connection for power and energy circuits



       Reliability first
       Stud technology is designed to ensure a reliable connection   This technology is very popular on the American market and
       thanks to the combination of:                         particularely in the energy applications.
          – Vibration resistant equipements (nuts, washers),
          – Lugs crimped on the cable provide pull-out proof
         termination.










          Available configurations







  4








                    Two studs                  One screw clamp / one stud                   One stud



          Connection technics



















       Up to 300 mm² / 1000 Kcmil










                                                                                                                  1SNC165028S0201
           M4-M5        M6             M8               M10                M12                M16
           6 mm 2      35 mm 2        70 mm  2         120 mm 2          185 mm 2            300 mm 2
           8 AWG       1 AWG         000 AWG           300 Kcmil         500 Kcmil          1000 Kcmil
