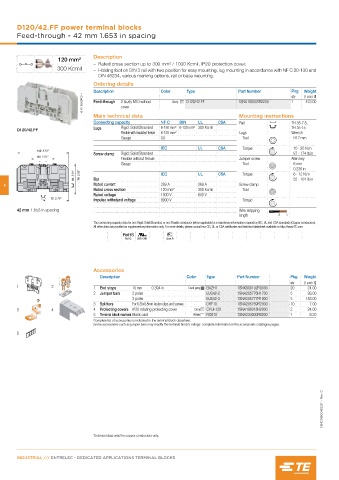

Page 368 - Entrelec Terminal Blocks Master Catalog

D120/42.FF power terminal blocks
Feed-through - 42 mm 1.653 in spacing

Description
120 mm²
– Rated cross section up to 300 mm² / 1000 Kcmil, IP20 protection cover,
300 Kcmil – Holding foot on DIN 3 rail with two position for easy mounting, lug mounting in accordance with NF C 20-130 and
DIN 46234, various marking options, rail or base mounting.
Ordering details
Description Color Type Part Number Pkg Weight
1SNC165009F0014 Feed-through 2 studs M10 without Grey D120/42.FF 1SNA190003R2200 1 423.00
(1 pce) g
qty
cover
Main technical data Mounting instructions
Connecting capacity NF C DIN UL CSA Rail TH 35-7.5,
Lugs Rigid: Solid/Stranded 6-150 mm² 6-120 mm² 300 Kcmil TH 35-15
D120/42.FF
Flexible with JOTVMBUFE GFSSVMF 6-120 mm² Lugs Wrench
Gauge C8 Tool H17 mm
IEC UL CSA Torque 10 - 20 N.m
140 5.51"
Screw clamp Rigid: Solid/Stranded 87 - 174 lb.in
64 2.51"
Flexible without ferrule Jumper screw Allen key
= =
Gauge Tool 6 mm
0.236 in
84 3.31" 76 2.99" Bar IEC UL CSA Torque 6 - 12 N.m
52 - 104 lb.in
4 Rated current 269 A 269 A Screw clamp
Rated cross section 120 mm² 300 Kcmil Tool
Rated voltage 1000 V 600 V
70 2.76"
Impulse withstand voltage 8000 V Torque
42 mm 1.653 in spacing Wire stripping
length
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
RoHS USR CNR Gost R

Accessories
Description Color Type Part Number Pkg Weight
qty (1 pce) g
1 2 1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Jumper bars 2 poles BJS42-2 1SNA205776R1700 5 93.00
3 poles BJS42-3 1SNA205777R1000 5 153.00
3 Splitters For 6.35x0.8mm faston clips and screws DRF10 1SNA205769R2000 10 7.00
3 4 4 Protecting covers IP20 rotating protecting cover Grey CPUF120 1SNA190018R2000 2 24.00
5 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
5

1SNC165004S0201 - Rev. C

Technical data valid for copper conductors only.
