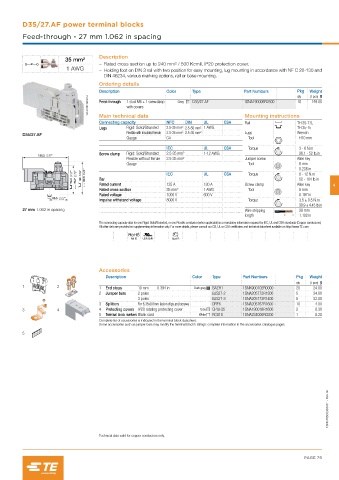

Page 371 - Entrelec Terminal Blocks Master Catalog

D35/27.AF power terminal blocks
Feed-through - 27 mm 1.062 in spacing

Description
35 mm²
– Rated cross section up to 240 mm² / 500 Kcmil, IP20 protection cover,
1 AWG – Holding foot on DIN 3 rail with two position for easy mounting, lug mounting in accordance with NF C 20-130 and
DIN 46234, various marking options, rail or base mounting.
Ordering details
Description Color Type Part Numbers Pkg Weight
(1 pce) g
1SNC165019F0014 Feed-through 1 stud M6 + 1 screw clamp Grey D35/27.AF 1SNA190006R2500 10 149.00
qty
with covers
Main technical data
Connecting capacity NFC DIN UL CSA Mounting instructions TH 35-7.5,
Rail
Lugs Rigid: Solid/Stranded 2.5-35 mm² 2.5-50 mm² 1 AWG TH 35-15
Flexible with JOTVMBUFE GFSSVMF 2.5-35 mm² 2.5-35 mm² Lugs Wrench
D35/27.AF
Gauge C4 Tool H10 mm
IEC UL CSA Torque 3 - 6 N.m
Screw clamp Rigid: Solid/Stranded 2.5-35 mm² 1-12 AWG 26.1 - 52 lb.in
136.5 5.37"
Flexible without ferrule 2.5-35 mm² Jumper screw Allen key
Gauge Tool 6 mm
0.236 in
78.2 3.07" 70.7 2.78" 90 3.54" 82.5 3.24" Bar IEC UL CSA Torque 6 - 12 N.m
52 - 104 lb.in
Rated current 125 A 130 A Screw clamp Allen key 4
Rated cross section 35 mm² 1 AWG Tool 5 mm
Rated voltage 1000 V 600 V 0.197 in
56.5 2.22"
Impulse withstand voltage 8000 V Torque 3.5 ± 0.5 N.m
30.9 ± 4.43 lb.in
27 mm 1.062 in spacing Wire stripping 28 mm
length 1.102 in
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com

RoHS USR CNR Gost R

Accessories
Description Color Type Part Numbers Pkg Weight
qty (1 pce) g
1 2 1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Jumper bars 2 poles BJS27-2 1SNA205772R1300 5 34.00
3 poles BJS27-3 1SNA205773R1400 5 52.00
3 Splitters For 6.35x0.8mm faston clips and screws DRF6 1SNA205767R1600 10 4.00
3 4 4 Protecting covers IP20 rotating protecting cover Grey CPUF35 1SNA190016R1600 2 8.30
5 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
5

1SNC165003S0201 - Rev. B

Technical data valid for copper conductors only.
