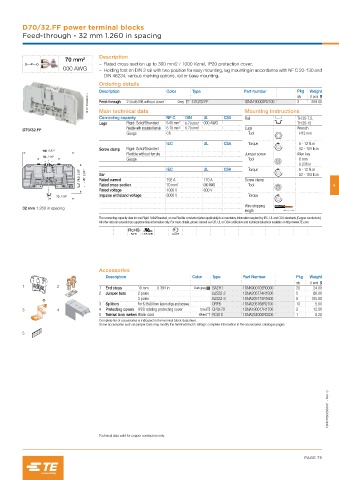

Page 367 - Entrelec Terminal Blocks Master Catalog

D70/32.FF power terminal blocks
Feed-through - 32 mm 1.260 in spacing

Description
70 mm²
– Rated cross section up to 300 mm2 / 1000 Kcmil, IP20 protection cover,
000 AWG – Holding foot on DIN 3 rail with two position for easy mounting, lug mounting in accordance with NF C 20-130 and
DIN 46234, various marking options, rail or base mounting.
Ordering details
Description Color Type Part Number Pkg Weight
1SNC165009F0014 Feed-through 2 studs M8 without cover Grey D70/32.FF 1SNA190002R2100 3 269.00
(1 pce) g
qty
Main technical data
Rail
Connecting capacity NF C DIN UL CSA Mounting instructions TH 35-7.5,
Lugs Rigid: Solid/Stranded 6-95 mm² 6-70 mm² 000 AWG TH 35-15
Flexible with JOTVMBUFE GFSSVMF 6-70 mm² 6-70 mm² Lugs Wrench
D70/32.FF
Gauge C6 Tool H13 mm
IEC UL CSA Torque 6 - 12 N.m
140 5.51" Screw clamp Rigid: Solid/Stranded 52 - 104 lb.in
Flexible without ferrule Jumper screw Allen key
56 2.20"
Gauge Tool 6 mm
= =
0.236 in
CSA
Torque
IEC
UL
6 - 12 N.m
74.5 2.93" 67 2.64" Bar 192 A 170 A Screw clamp 52 - 104 lb.in
Rated current
Rated cross section 70 mm² 000 AWG Tool 4
Rated voltage 1000 V 600 V
70 2.76" Impulse withstand voltage 8000 V Torque
Wire stripping
32 mm 1.260 in spacing
length
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
RoHS USR CNR Gost R

Accessories
Description Color Type Part Number Pkg Weight
qty (1 pce) g
1 2 1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Jumper bars 2 poles BJS32-2 1SNA205774R1500 5 66.00
3 poles BJS32-3 1SNA205775R1600 5 105.80
3 Splitters For 6.35x0.8mm faston clips and screws DRF8 1SNA205768R2700 10 5.00
3 4 4 Protecting covers IP20 rotating protecting cover Grey CPUF70 1SNA190017R1700 2 12.00
5 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
5

1SNC165005S0201 - Rev. C

Technical data valid for copper conductors only.
