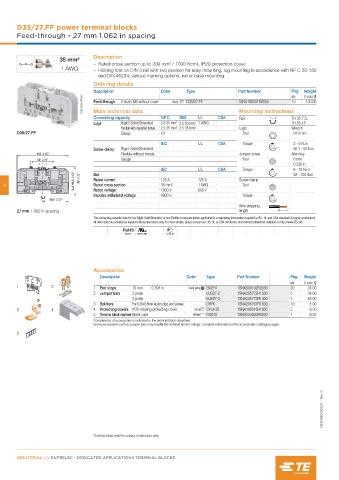

Page 366 - Entrelec Terminal Blocks Master Catalog

D35/27.FF power terminal blocks
Feed-through - 27 mm 1.062 in spacing

Description
35 mm²
– Rated cross section up to 300 mm² / 1000 Kcmil, IP20 protection cover,
1 AWG – Holding foot on DIN 3 rail with two position for easy mounting, lug mounting in accordance with NF C 20-130
and DIN 46234, various marking options, rail or base mounting.
Ordering details
Description Color Type Part Number Pkg Weight
(1 pce) g
1SNC165010F0014 Feed-through 2 studs M6 without cover Grey D35/27.FF 1SNA190001R2000 10 130.00
qty
Main technical data
Mounting instructions
Connecting capacity NF C DIN UL CSA Rail TH 35-7.5,
Lugs Rigid: Solid/Stranded 2.5-35 mm² 2.5-50 mm² 1 AWG TH 35-15
Flexible with JOTVMBUFE GFSSVMF 2.5-35 mm² 2.5-35 mm² Lugs Wrench
D35/27.FF Gauge C4 Tool H10 mm
IEC UL CSA Torque 3 - 6 N.m
Screw clamp Rigid: Solid/Stranded 26.1 - 52 lb.in
113 4.45" Flexible without ferrule Jumper screw Allen key
52 2.05" Gauge Tool 6 mm
= = 0.236 in
IEC UL CSA Torque 6 - 12 N.m
66.5 2.62" 59 2.32" Bar 125 A 125 A Screw clamp 52 - 104 lb.in
Rated current
4 Rated cross section 35 mm² 1 AWG Tool
Rated voltage 1000 V 600 V
Impulse withstand voltage 8000 V Torque
56.5 2.22"
Wire stripping
27 mm 1.062 in spacing length
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
RoHS USR CNR Gost R

Accessories
Description Color Type Part Number Pkg Weight
qty (1 pce) g
1 2 1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Jumper bars 2 poles BJS27-2 1SNA205772R1300 5 34.00
3 poles BJS27-3 1SNA205773R1400 5 52.00
3 Splitters For 6.35x0.8mm faston clips and screws DRF6 1SNA205767R1600 10 4.00
3 4 4 Protecting covers IP20 rotating protecting cover Grey CPUF35 1SNA190016R1600 2 8.30
5 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
5

1SNC165006S0201 - Rev. C

Technical data valid for copper conductors only.
