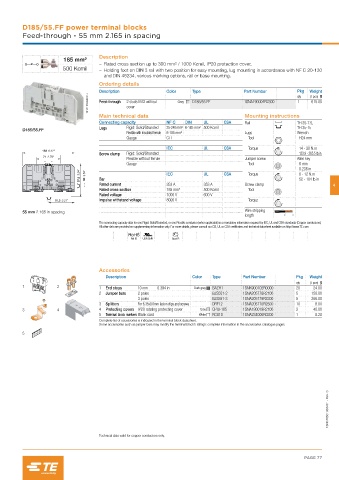

Page 369 - Entrelec Terminal Blocks Master Catalog

D185/55.FF power terminal blocks
Feed-through - 55 mm 2.165 in spacing

Description
185 mm²
– Rated cross section up to 300 mm² / 1000 Kcmil, IP20 protection cover,
500 Kcmil – Holding foot on DIN 3 rail with two position for easy mounting, lug mounting in accordance with NF C 20-130
and DIN 46234, various marking options, rail or base mounting.
Ordering details
Description Color Type Part Number Pkg Weight
1SNC165009F0014 Feed-through 2 studs M12 without Grey D185/55.FF 1SNA190004R2300 1 615.00
(1 pce) g
qty
cover
Main technical data Mounting instructions
Connecting capacity NF C DIN UL CSA Rail TH 35-7.5,
Lugs Rigid: Solid/Stranded 25-240 mm² 6-185 mm² 500 Kcmil TH 35-15
D185/55.FF
Flexible with JOTVMBUFE GFSSVMF 6-185 mm² Lugs Wrench
Gauge C11 Tool H24 mm
IEC UL CSA Torque 14 - 30 N.m
163 6.42"
Screw clamp Rigid: Solid/Stranded 123.9 - 265.5 lb.in
71 2.79"
Flexible without ferrule Jumper screw Allen key
= =
Gauge Tool 6 mm
0.236 in
97.5 3.84" 90 3.54" Bar IEC UL CSA Torque 6 - 12 N.m
52 - 104 lb.in
Rated current 353 A 353 A Screw clamp 4
Rated cross section 185 mm² 500 Kcmil Tool
Rated voltage 1000 V 600 V
81.5 3.21" Impulse withstand voltage 8000 V Torque
55 mm 2.165 in spacing Wire stripping
length
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com

RoHS USR CNR Gost R

Accessories
Description Color Type Part Number Pkg Weight
qty (1 pce) g
1 2 1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Jumper bars 2 poles BJS551-2 1SNA205778R2100 5 158.00
3 poles BJS551-3 1SNA205779R2200 5 266.00
3 Splitters For 6.35x0.8mm faston clips and screws DRF12 1SNA205770R2500 10 8.00
3 4 4 Protecting covers IP20 rotating protecting cover Grey CPUF185 1SNA190019R2100 2 40.00
5 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
5

1SNC165010S0201 - Rev. C

Technical data valid for copper conductors only.

PAGE 77
