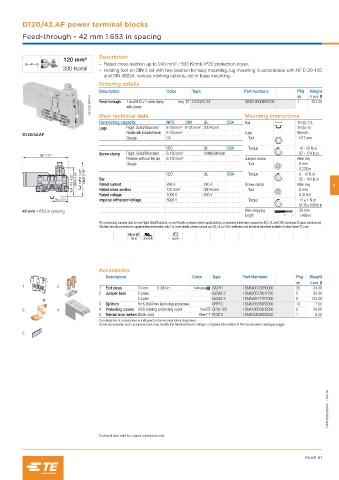

D120/42.AF power terminal blocks
Feed-through - 42 mm 1.653 in spacing

Description
120 mm²
– Rated cross section up to 240 mm² / 500 Kcmil, IP20 protection cover,
300 Kcmil – Holding foot on DIN 3 rail with two position for easy mounting, lug mounting in accordance with NF C 20-130
and DIN 46234, various marking options, rail or base mounting.
Ordering details
Description Color Type Part Numbers Pkg Weight
(1 pce) g
1SNC165019F0014 Feed-through 1 stud M10 + 1 screw clamp Grey D120/42.AF 1SNA190008R0700 1 423.00
qty
with covers
Main technical data
Connecting capacity NFC DIN UL CSA Mounting instructions TH 35-7.5,
Rail
Lugs Rigid: Solid/Stranded 6-150 mm² 6-120 mm² 300 Kcmil TH 35-15
Flexible with JOTVMBUFE GFSSVMF 6-120 mm² Lugs Wrench
D120/42.AF
Gauge C8 Tool H17 mm
IEC UL CSA Torque 10 - 20 N.m
Screw clamp Rigid: Solid/Stranded 6-150 mm² 10 AWG-300 Kcmil 87 - 174 lb.in
197 7.75"
Flexible without ferrule 6-120 mm² Jumper screw Allen key
Gauge Tool 6 mm
0.236 in
UL
6 - 12 N.m
IEC
Torque
CSA
115 4.52" 107.5 4.23" 137.2 5.40" 129.7 5.10" Bar 269 A 240 A Screw clamp Allen key 4
52 - 104 lb.in
Rated current
Rated cross section 120 mm² 300 Kcmil Tool 8 mm
Rated voltage 1000 V 600 V 0.315 in
70 2.75" Impulse withstand voltage 8000 V Torque 11 ± 1 N.m
97.36 ± 8.85 lb.in
42 mm 1.653 in spacing Wire stripping 38 mm
length 1.496 in
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
RoHS USR CNR Gost R

Accessories
Description Color Type Part Numbers Pkg Weight
qty (1 pce) g
1 2 1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Jumper bars 2 poles BJS42-2 1SNA205776R1700 5 93.00
3 poles BJS42-3 1SNA205777R1000 5 153.00
3 Splitters For 6.35x0.8mm faston clips and screws DRF10 1SNA205769R2000 10 7.00
3 4 4 Protecting covers IP20 rotating protecting cover Grey CPUF120 1SNA190018R2000 2 24.00
5 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
5

1SNC165008S0201 - Rev. B

Technical data valid for copper conductors only.
