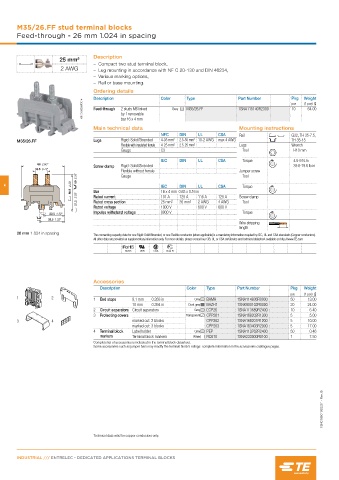

Page 376 - Entrelec Terminal Blocks Master Catalog

M35/26.FF stud terminal blocks
Feed-through - 26 mm 1.024 in spacing

Description
25 mm²
– Compact two stud terminal block,
2 AWG – Lug mounting in accordance with NF C 20-130 and DIN 46234,
– Various marking options,
– Rail or base mounting.
Ordering details
Description Color Type Part Number Pkg Weight
1SNC165008F0014 Feed-through 2 studs M6 linked Grey M35/26.FF 1SNA115140R2300 10 64.00
(1 pce) g
pce
by 1 removable
bar 16 x 4 mm
Main technical data Mounting instructions
NFC DIN UL CSA Rail G32, TH 35-7.5,
M35/26.FF Lugs Rigid: Solid/Stranded 4-35 mm² 2.5-50 mm² 10-2 AWG max 4 AWG TH 35-15
Flexible with JOTVMBUFE GFSSVMF 4-25 mm² 2.5-25 mm² Lugs Wrench
Gauge C3 Tool H10 mm
IEC DIN UL CSA Torque 4.5-9 N.m
66 2.60"
Screw clamp Rigid: Solid/Stranded 39.8-79.6 lb.in
18.5 0.73"
Flexible without ferrule Jumper screw
59 2.33" Gauge Tool
56.5 2.23" Bar 16 x 4 mm 0.63 x 0.16 in
4 IEC DIN UL CSA Torque
51.5 2.03" Rated current 101 A 125 A 115 A 125 A Screw clamp
35 mm²
4 AWG
25 mm²
Rated cross section
2 AWG
Tool
Rated voltage 1000 V 600 V 600 V
33.5 1.32" Impulse withstand voltage 8000 V Torque
38.5 1.52"
Wire stripping
length
26 mm 1.024 in spacing
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
RoHS USR CSA Gost R

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2 1 End stops 9.1 mm 0.358 in Grey BAMH 1SNA114836R0000 50 13.00
10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Circuit separators Circuit separators Grey ECP26 1SNA113689R2400 10 6.40
3 Protecting covers Transparent CPP261 1SNA168202R1300 5 5.00
3 4 marked cut: 2 blocks CPP262 1SNA168201R1200 5 10.00
marked cut: 3 blocks CPP263 1SNA163403R2000 5 17.00
4 Terminal block Label holder Grey PEP 1SNA113762R2400 50 0.46
markers Terminal block markers White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC165019S0201 - Rev. B

Technical data valid for copper conductors only.
