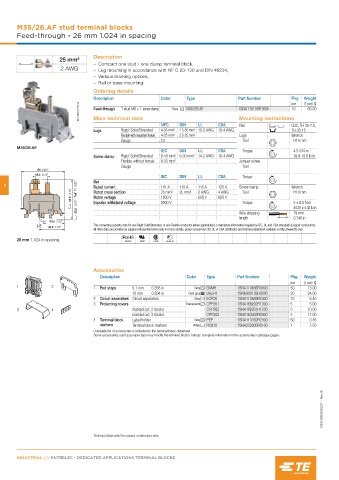

Page 380 - Entrelec Terminal Blocks Master Catalog

M35/26.AF stud terminal blocks
Feed-through - 26 mm 1.024 in spacing

Description
25 mm²
– Compact one stud / one clamp terminal block,
2 AWG – Lug mounting in accordance with NF C 20-130 and DIN 46234,
– Various marking options,
– Rail or base mounting.
Ordering details
Description Color Type Part Number Pkg Weight
(1 pce) g
pce
1SNC165013F0014 Feed-through 1 stud M6 + 1 screw clamp Grey M35/26.AF 1SNA115139R1600 10 60.00
Main technical data
Mounting instructions
NFC DIN UL CSA Rail G32, TH 35-7.5,
Lugs Rigid: Solid/Stranded 4-35 mm² 2.5-50 mm² 10-2 AWG 10-4 AWG TH 35-15
Flexible with JOTVMBUFE GFSSVMF 4-25 mm² 2.5-25 mm² Lugs Wrench
Gauge C3 Tool H10 mm
M35/26.AF
IEC DIN UL CSA Torque 4.5-9 N.m
Screw clamp Rigid: Solid/Stranded 6-50 mm² 6-50 mm² 14-2 AWG 10-4 AWG 39.8-79.6 lb.in
Flexible without ferrule 6-25 mm² Jumper screw
Gauge Tool
66 2.60"
18.5 0.73"
IEC DIN UL CSA Torque
4 71 2.80" Bar 101 A 115 A 115 A 125 A Screw clamp Wrench
Rated current
68.5 2.70" Rated cross section 25 mm² 25 mm² 2 AWG 4 AWG Tool H10 mm
600 V
Rated voltage
600 V
1000 V
63.5 2.50" Impulse withstand voltage 8000 V Torque 5 ± 0.5 N.m
44.25 ± 4.43 lb.in
Wire stripping
length 19 mm
0.748 in
33.5 1.32"
38.5 1.52" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
26 mm 1.024 in spacing RoHS USR CSA Gost R

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2 1 End stops 9.1 mm 0.358 in Grey BAMH 1SNA114836R0000 50 13.00
10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Circuit separators Circuit separators Grey ECP26 1SNA113689R2400 10 6.40
3 Protecting covers Transparent CPP261 1SNA168202R1300 5 5.00
3 4 marked cut: 2 blocks CPP262 1SNA168201R1200 5 10.00
marked cut: 3 blocks CPP263 1SNA163403R2000 5 17.00
4 Terminal block Label holder Grey PEP 1SNA113762R2400 50 0.46
markers Terminal block markers White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC165023S0201 - Rev. B

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - DEDICATED APPLICATIONS TERMINAL BLOCKS
