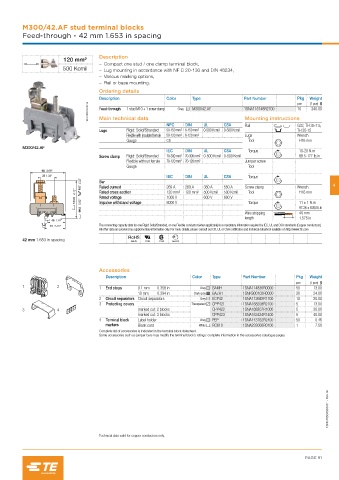

M300/42.AF stud terminal blocks
Feed-through - 42 mm 1.653 in spacing

Description
120 mm²
– Compact one stud / one clamp terminal block,
500 Kcmil – Lug mounting in accordance with NF C 20-130 and DIN 46234,
– Various marking options,
– Rail or base mounting.
Ordering details
Description Color Type Part Number Pkg Weight
(1 pce) g
1SNC165013F0014 Feed-through 1 stud M10 + 1 screw clamp Grey M300/42.AF 1SNA115148R2700 10 340.00
pce
Main technical data
Mounting instructions
NFC DIN UL CSA Rail G32, TH 35-7.5,
Lugs Rigid: Solid/Stranded 50-150 mm² 6-150 mm² 0-500 Kcmil 0-500 Kcmil TH 35-15
Flexible with JOTVMBUFE GFSSVMF 50-120 mm² 6-120 mm² Lugs Wrench
Gauge C8 Tool H16 mm
M300/42.AF
IEC DIN UL CSA Torque 10-20 N.m
Screw clamp Rigid: Solid/Stranded 70-300 mm² 70-300 mm² 0-500 Kcmil 0-500 Kcmil 88.5-177 lb.in
Flexible without ferrule 70-120 mm² 70-120 mm² Jumper screw
Gauge Tool
93 3.66"
35 1.38" IEC DIN UL CSA Torque
107 4.22" Bar 269 A 269 A 380 A 550 A Screw clamp Wrench 4
Rated current
104.5 4.12" Rated cross section 120 mm² 120 mm² 500 Kcmil 500 Kcmil Tool H16 mm
Rated voltage
600 V
600 V
1000 V
99.5 3.92" Impulse withstand voltage 8000 V Torque 11 ± 1 N.m
97.36 ± 8.85 lb.in
Wire stripping 40 mm
length 1.575 in
46 1.81"
51 2.01" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
42 mm 1.653 in spacing RoHS USR CSA Gost R

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2 1 End stops 9.1 mm 0.358 in Grey BAMH 1SNA114836R0000 50 13.00
10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Circuit separators Circuit separators Grey ECP42 1SNA113692R1700 10 20.00
3 Protecting covers Transparent CPP421 1SNA168208R2100 5 13.00
3 4 marked cut: 2 blocks CPP422 1SNA168207R1000 5 30.00
marked cut: 3 blocks CPP423 1SNA163424R1400 5 40.00
4 Terminal block Label holder Grey PEP 1SNA113762R2400 50 0.46
markers Blank card White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC165026S0201 - Rev. B

Technical data valid for copper conductors only.
