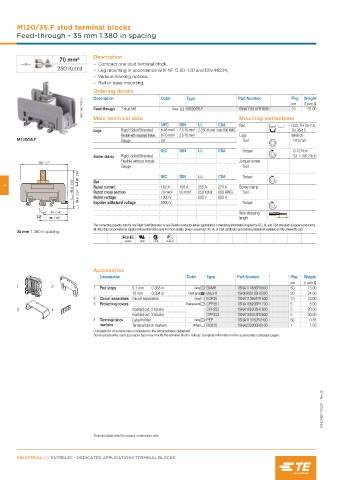

Page 386 - Entrelec Terminal Blocks Master Catalog

M120/35.F stud terminal blocks
Feed-through - 35 mm 1.380 in spacing

Description
70 mm²
– Compact one stud terminal block,
250 Kcmil – Lug mounting in accordance with NF C 20-130 and DIN 46234,
– Various marking options,
– Rail or base mounting.
Ordering details Color Type Part Number Pkg Weight
Description
1SNC165017F0014 Feed-through 1 stud M8 Grey M120/35.F 1SNA115147R1600 pce (1 pce) g
10
61.00
Main technical data
NFC DIN UL CSA Mounting instructions G32, TH 35-7.5,
Rail
Lugs Rigid: Solid/Stranded 6-95 mm² 2.5-70 mm² 2-250 Kcmil max 000 AWG TH 35-15
Flexible with JOTVMBUFE GFSSVMF 6-70 mm² 2.5-70 mm² Lugs Wrench
M120/35.F Gauge C6 Tool H13 mm
IEC DIN UL CSA Torque 6-12 N.m
Screw clamp Rigid: Solid/Stranded 53.1-106.2 lb.in
69 2.72" Flexible without ferrule Jumper screw
Gauge Tool
67 2.64" IEC DIN UL CSA Torque
64.5 2.54" Rated current 192 A 150 A 255 A 270 A Screw clamp
4 Bar
59.5 2.34" Rated cross section 70 mm² 50 mm² 250 Kcmil 000 AWG Tool
600 V
1000 V
Rated voltage
600 V
Impulse withstand voltage
Torque
8000 V
34 1.34" Wire stripping
39 1.54" length
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
35 mm 1.380 in spacing
RoHS USR CSA Gost R

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2 1 End stops 9.1 mm 0.358 in Grey BAMH 1SNA114836R0000 50 13.00
10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Circuit separators Circuit separators Grey ECP35 1SNA113691R1600 10 10.00
3 Protecting covers Transparent CPP351 1SNA168206R1700 5 8.00
3 4 marked cut: 2 blocks CPP352 1SNA168205R1600 5 20.00
marked cut: 3 blocks CPP353 1SNA163418R2600 5 20.00
4 Terminal block Label holder Grey PEP 1SNA113762R2400 50 0.46
markers Terminal block markers White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC165017S0201 - Rev. B

Technical data valid for copper conductors only.
