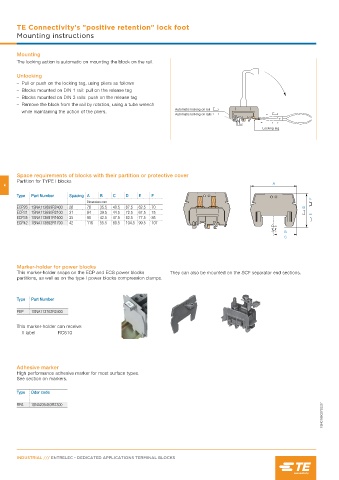

Page 388 - Entrelec Terminal Blocks Master Catalog

TE Connectivity's "positive retention" lock foot
Mounting instructions

Mounting
The locking action is automatic on mounting the block on the rail.

Unlocking
– Pull or push on the locking tag, using pliers as follows
– Blocks mounted on DIN 1 rail: pull on the release tag
– Blocks mounted on DIN 3 rails: push on the release tag
– Remove the block from the rail by rotation, using a tube wrench
Automatic locking on rail
while maintaining the action of the pliers.
Automatic locking on rails
Locking tag

Space requirements of blocks with their partition or protective cover
Partition for TYPE I blocks
4 A
Type Part Number Spacing A B C D E F
F
Dimensions mm
ECP26 1SNA113689R2400 26 76 35.5 40.5 67.5 62.5 70 D
ECP31 1SNA113690R2100 31 84 39.5 44.5 72.5 67.5 75
E
ECP35 1SNA113691R1600 35 90 42.5 47.5 82.5 77.5 85
ECP42 1SNA113692R1700 42 116 55.5 60.5 104.5 99.5 107
B
C

Marker-holder for power blocks
This marker-holder snaps on the ECP and ECS power blocks They can also be mounted on the SCF separator end sections.
partitions, as well as on the type I power blocks compression clamps.

Type Part Number

PEP 1SNA113762R2400

This marker-holder can receive:
1 label RC610

Adhesive marker
High performance adhesive marker for most surface types.
See section on markers.

Type Oder code
1SNC165027S0201
RPA 1SNA235463R2300

INDUSTRIAL /// ENTRELEC - DEDICATED APPLICATIONS TERMINAL BLOCKS
