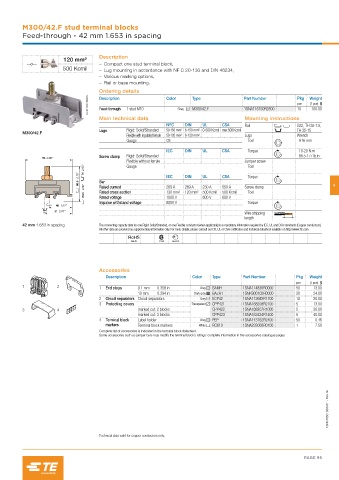

Page 387 - Entrelec Terminal Blocks Master Catalog

M300/42.F stud terminal blocks
Feed-through - 42 mm 1.653 in spacing

Description
120 mm²
– Compact one stud terminal block,
500 Kcmil – Lug mounting in accordance with NF C 20-130 and DIN 46234,
– Various marking options,
– Rail or base mounting.
Ordering details
1SNC165016F0014 Description 1 stud M10 Color Grey Type Part Number Pkg Weight
(1 pce) g
pce
100.00
M300/42.F
10
Feed-through
1SNA115150R2500
Main technical data Mounting instructions
NFC DIN UL CSA Rail G32, TH 35-7.5,
Lugs Rigid: Solid/Stranded 50-150 mm² 6-150 mm² 0-500 Kcmil max 500 Kcmil TH 35-15
M300/42.F
Flexible with JOTVMBUFE GFSSVMF 50-120 mm² 6-120 mm² Lugs Wrench
Gauge C8 Tool H16 mm
IEC DIN UL CSA Torque 10-20 N.m
93 3.66" Screw clamp Rigid: Solid/Stranded 88.5-177 lb.in
Flexible without ferrule Jumper screw
71 2.80" Gauge Tool
68.5 2.70" Bar IEC DIN UL CSA Torque 4
63.5 2.50" Rated current 269 A 269 A 230 A 550 A Screw clamp
120 mm²
120 mm² 500 Kcmil
500 Kcmil
Tool
Rated cross section
Rated voltage
Impulse withstand voltage 1000 V 600 V 600 V Torque
8000 V
46 1.81"
51 2.01"
Wire stripping
length
42 mm 1.653 in spacing The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
RoHS CSA Gost R

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2 1 End stops 9.1 mm 0.358 in Grey BAMH 1SNA114836R0000 50 13.00
10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Circuit separators Circuit separators Grey ECP42 1SNA113692R1700 10 20.00
3 Protecting covers Transparent CPP421 1SNA168208R2100 5 13.00
3 4 marked cut: 2 blocks CPP422 1SNA168207R1000 5 30.00
marked cut: 3 blocks CPP423 1SNA163424R1400 5 40.00
4 Terminal block Label holder Grey PEP 1SNA113762R2400 50 0.46
markers Terminal block markers White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC165018S0201 - Rev. B

Technical data valid for copper conductors only.

PAGE 95
