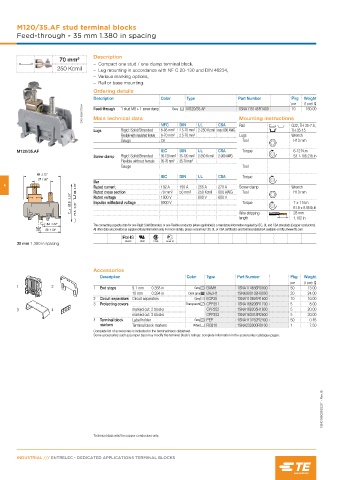

Page 382 - Entrelec Terminal Blocks Master Catalog

M120/35.AF stud terminal blocks
Feed-through - 35 mm 1.380 in spacing

Description
70 mm²
– Compact one stud / one clamp terminal block,
250 Kcmil – Lug mounting in accordance with NF C 20-130 and DIN 46234,
– Various marking options,
– Rail or base mounting.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1SNC165013F0014 Main technical data Mounting instructions
1SNA115145R1400
10
Feed-through
160.00
M120/35.AF
1 stud M8 + 1 screw clamp
Grey
NFC DIN UL CSA Rail G32, TH 35-7.5,
Lugs Rigid: Solid/Stranded 6-95 mm² 2.5-70 mm² 2-250 Kcmil max 000 AWG TH 35-15
Flexible with JOTVMBUFE GFSSVMF 6-70 mm² 2.5-70 mm² Lugs Wrench
Gauge C6 Tool H13 mm
M120/35.AF IEC DIN UL CSA Torque 6-12 N.m
Screw clamp Rigid: Solid/Stranded 35-120 mm² 35-120 mm² 2-250 Kcmil 2-000 AWG 53.1-106.2 lb.in
Flexible without ferrule 35-70 mm² 35-70 mm²
Gauge Tool
69 2.72" IEC DIN UL CSA Torque
27 1.06"
Bar
85 3.35" Rated cross section 70 mm² 50 mm² 250 Kcmil 000 AWG Tool H13 mm
4 Rated current 192 A 150 A 255 A 270 A Screw clamp Wrench
82.5 3.25" Rated voltage 1000 V 600 V 600 V Torque 7 ± 1 N.m
8000 V
Impulse withstand voltage
77.5 3.05" Wire stripping 61.9 ± 8.85 lb.in
28 mm
length 1.102 in
34 1.34" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
39 1.54" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
RoHS USR CSA Gost R
35 mm 1.380 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2 1 End stops 9.1 mm 0.358 in Grey BAMH 1SNA114836R0000 50 13.00
10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Circuit separators Circuit separators Grey ECP35 1SNA113691R1600 10 10.00
3 Protecting covers Transparent CPP351 1SNA168206R1700 5 8.00
3 4 marked cut: 2 blocks CPP352 1SNA168205R1600 5 20.00
marked cut: 3 blocks CPP353 1SNA163418R2600 5 20.00
4 Terminal block Label holder Grey PEP 1SNA113762R2400 50 0.46
markers Terminal block markers White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC165025S0201 - Rev. B

Technical data valid for copper conductors only.
