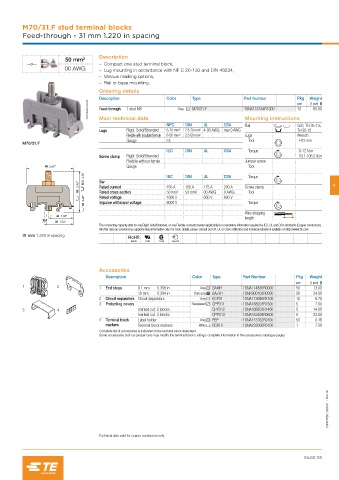

M70/31.F stud terminal blocks
Feed-through - 31 mm 1.220 in spacing

Description
50 mm²
– Compact one stud terminal block,
00 AWG – Lug mounting in accordance with NF C 20-130 and DIN 46234,
– Various marking options,
– Rail or base mounting.
Ordering details
Description Color Type Part Number Pkg Weight
1SNC165018F0014 Feed-through 1 stud M8 Grey M70/31.F 1SNA115144R1300 10 60.00
(1 pce) g
pce
Main technical data
NFC DIN UL CSA Mounting instructions G32, TH 35-7.5,
Rail
Lugs Rigid: Solid/Stranded 6-70 mm² 2.5-70 mm² 4-00 AWG max 0 AWG TH 35-15
Flexible with JOTVMBUFE GFSSVMF 6-50 mm² 2.5-50 mm² Lugs Wrench
Gauge C5 Tool H13 mm
M70/31.F
IEC DIN UL CSA Torque 6-12 N.m
Screw clamp Rigid: Solid/Stranded 53.1-106.2 lb.in
Flexible without ferrule Jumper screw
66 2.60" Gauge Tool
65.5 2.58 Bar IEC DIN UL CSA Torque
63 2.48" Rated current 150 A 150 A 175 A 200 A Screw clamp 4
Tool
00 AWG
Rated cross section
50 mm²
50 mm²
0 AWG
58 2.28" Rated voltage 1000 V 600 V 600 V Torque
Impulse withstand voltage
8000 V
Wire stripping
34 1.34"
length
39 1.54"
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
31 mm 1.220 in spacing
RoHS USR CSA Gost R
Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2 1 End stops 9.1 mm 0.358 in Grey BAMH 1SNA114836R0000 50 13.00
10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Circuit separators Circuit separators Grey ECP31 1SNA113690R2100 10 6.70
3 Protecting covers Transparent CPP311 1SNA168204R1500 5 7.00
3 4 marked cut: 2 blocks CPP312 1SNA168203R1400 5 14.00
marked cut: 3 blocks CPP313 1SNA163409R0600 5 23.00
4 Terminal block Label holder Grey PEP 1SNA113762R2400 50 0.46
markers Terminal block markers White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
