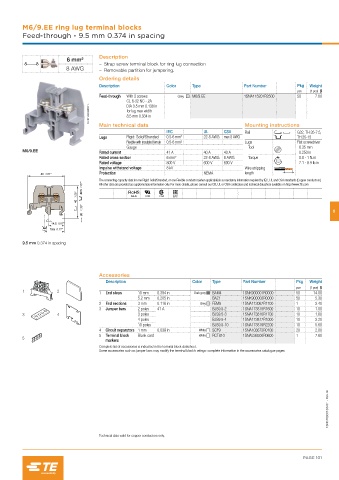

Page 393 - Entrelec Terminal Blocks Master Catalog

M6/9.EE ring lug terminal blocks
Feed-through - 9.5 mm 0.374 in spacing

Description
6 mm²
– Strap screw terminal block for ring lug connection
8 AWG – Removable partition for jumpering.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Feed-through With 2 screws Grey M6/9.EE 1SNA115201R2500 50 7.00
CL 6-32 NC - 2A
1SNC168009F0014 for lug max width
DIA 3.5 mm 0.138 in
8.5 mm 0.334 in
Main technical data Mounting instructions
IEC UL CSA Rail G32, TH 35-7.5,
Lugs Rigid: Solid/Stranded 0.5-6 mm² 22-8 AWG max 8 AWG TH 35-15
Flexible with JOTVMBUFE GFSSVMF 0.5-6 mm² Lugs Flat screwdriver
Gauge Tool 6.35 mm
M6/9.EE Rated current 41 A 40 A 40 A 0.250 in
Rated cross section 6 mm² 22-8 AWG 8 AWG Torque 0.8 - 1 N.m
Rated voltage 800 V 600 V 600 V 7.1 - 8.9 lb.in
Impulse withstand voltage 8 kV Wire stripping
41 1.61" Protection NEMA length
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
42.5 1.67" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
40 1.58" RoHS USR CSA EAC

35 1.38" 5

14.5 0.57"
19.5 0.77"

9.5 mm 0.374 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 3 mm 0.118 in Grey FEM9 1SNA113067R1700 1 2.40
3 Jumper bars 2 poles 41 A BJS9.5-2 1SNA173815R1600 10 1.00
3 4 3 poles BJS9.5-3 1SNA173816R1700 10 1.60
4 poles BJS9.5-4 1SNA173817R1000 10 2.20
10 poles BJS9.5-10 1SNA173819R2200 10 5.60
4 Circuit separators 1 mm 0.039 in White SCF9 1SNA103672R0100 20 2.00
5 Terminal block Blank card White RCT810 1SNA236500R0600 1 7.60
5
markers
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC168001S0201 - Rev. B

Technical data valid for copper conductors only.
