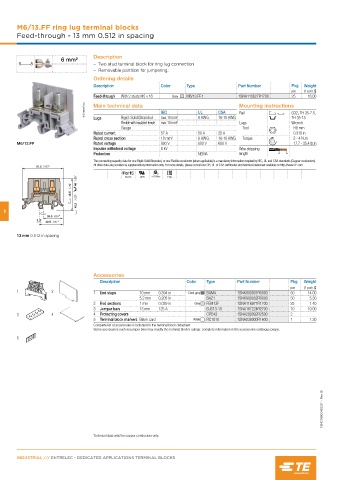

Page 396 - Entrelec Terminal Blocks Master Catalog

M6/13.FF ring lug terminal blocks
Feed-through - 13 mm 0.512 in spacing

Description
6 mm²
– Two stud terminal block for ring lug connection
– Removable partition for jumpering.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Feed-through With 2 studs M5 x 16 Grey M6/13.FF.1 1SNA115627R1700 25 16.00
1SNC168015F0014 Main technical data IEC UL CSA Mounting instructions G32, TH 35-7.5,
Rail
Rigid: Solid/Stranded
Lugs
Flexible with JOTVMBUFE GFSSVMF max 10 mm² 8 AWG 18-10 AWG Lugs TH 35-15
Wrench
max 10 mm²
Gauge Tool H8 mm
Rated current 57 A 50 A 25 A 0.310 in
Rated cross section 10 mm² 8 AWG 18-10 AWG Torque 2 - 4 N.m
M6/13.FF Rated voltage 800 V 600 V 600 V 17.7 - 35.4 lb.in
Impulse withstand voltage 8 kV Wire stripping
Protection NEMA length
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
51.5 2.03" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
US
C cCSAus
48 1.89" EAC
USR
RoHS
45.5 1.79"
40.5 1.59"
5
24.5 0.97"
29.5 1.61"

13 mm 0.512 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 1 mm 0.039 in Grey FEM13F 1SNA116977R1700 25 1.40
3 Jumper bars 13 mm 125 A BJS13-10 1SNA167224R2700 10 10.00
3 4 4 Protecting covers CPE43 1SNA280092R2500 2
5 Terminal block markers Blank card White RC1010 1SNA238000R1600 1 1.30
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
5

1SNC168004S0201 - Rev. B

Technical data valid for copper conductors only.
