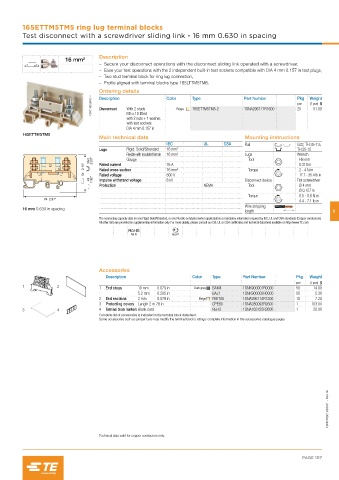

165ETTM5TM5 ring lug terminal blocks
Test disconnect with a screwdriver sliding link - 16 mm 0.630 in spacing

Description
16 mm²
– Secure your disconnect operations with the disconnect sliding link operated with a screwdriver,
– Ease your test operations with the 2 independent built-in test sockets compatible with DIA 4 mm 0.157 in test plugs,
– Two stud terminal block for ring lug connection,
– Profile aligned with terminal blocks type 165LTTM5TM5.
Ordering details Color Type Part Number Pkg Weight
1SNC168033F0014 Disconnect With 2 studs Beige 165ETTM5TM5-2 1SNA296117R1600 pce (1 pce) g
Description
51.00
25
M5 x 18 fitted
with 2 nuts + 1 washer,
with test sockets
DIA 4 mm 0.157 in
165ETTM5TM5
Main technical data Mounting instructions
IEC UL CSA Rail G32, TH 35-7.5,
Lugs Rigid: Solid/Stranded 16 mm² TH 35-15
Flexible with JOTVMBUFE GFSSVMF 16 mm² Lugs Wrench
Gauge Tool H8 mm
Rated current 76 A 0.310 in
Rated cross section 16 mm² Torque 2 - 4 N.m
Rated voltage 800 V 17.7 - 35.4 lb.in
Impulse withstand voltage 8 kV Disconnect device Flat screwdriver
Protection NEMA Tool Ø 4 mm
Ø 0.157 in
Torque 0.5 - 0.8 N.m
4.4 - 7.1 lb.in
Wire stripping
16 mm 0.630 in spacing
length 5
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
RoHS Gost R

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2 1 End stops 10 mm 0.079 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2 mm 0.079 in Beige FEET80 1SNA296114R1300 10 7.20
3 Protecting covers Length 2 m 78 in CPE80 1SNA280093R2600 1 103.00
3 4 4 Terminal block markers Blank card REH3 1SNA163155R2600 1 20.00
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC168012S0201 - Rev. B

Technical data valid for copper conductors only.
