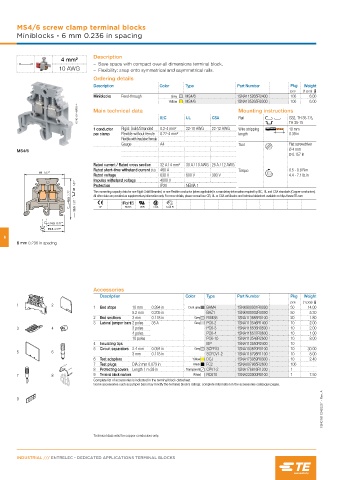

Page 404 - Entrelec Terminal Blocks Master Catalog

MS4/6 screw clamp terminal blocks
Miniblocks - 6 mm 0.236 in spacing

Description
4 mm²
– Save space with compact over-all dimensions terminal block,
10 AWG – Flexibility: snap onto symmetrical and asymmetrical rails.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Miniblocks Feed-through Grey MS4/6 1SNA115265R2400 100 6.00
Yellow MS4/6 1SNA105265R0300 100 6.00
1SNC161149F0014 Main technical data IEC UL CSA Mounting instructions

G32, TH 35-7.5,
Rail
10 mm
1 conductor Rigid: Solid/Stranded 0.2-4 mm² 22-10 AWG 22-12 AWG Wire stripping TH 35-15
per clamp Flexible without ferrule 0.22-4 mm² length 0.39 in
Flexible with insulated ferrule
Gauge A4 Tool Flat screwdriver
Ø 4 mm
MS4/6
Ø 0.157 in
Rated current / Rated cross section 32 A / 4 mm² 30 A / 10 AWG 25 A / 12 AWG
Rated short-time withstand current (1s) 480 A Torque 0.5 - 0.8 Nm
41 1.61"
Rated voltage 630 V 600 V 300 V 4.4 - 7.1 lb.in
4000 V
Impulse withstand voltage
46 1.81" Protection IP20 NEMA 1
43.5 1.71" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
38.5 1.51" CE RoHS USR CSA Gost R

14.5 0.57"
19.5 0.77"
6
6 mm 0.236 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 3 mm 0.118 in Grey FEMS6 1SNA113885R0100 20 1.80
3 Lateral jumper bars 2 poles 35 A Grey PC6-2 1SNA113546R1400 10 2.00
3 4 3 poles PC6-3 1SNA116536R0500 10 2.00
4 poles PC6-4 1SNA116537R0600 10 1.00
10 poles PC6-10 1SNA113548R2600 10 8.00
4 Insulating tips EIP 1SNA113550R2400 10
5 Circuit separators 2.4 mm 0.094 in Grey SCFEX3 1SNA103620R0100 10 30.00
5 6
3 mm 0.118 in SCFCV1-2 1SNA116795R1100 10 8.00
6 Test adapters Yellow DCJ 1SNA173059R0300 10 2.40
7 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
8 Protecting covers Length 1 m 39 in Transparent CPV1-2 1SNA176816R1200 1
7 8 9 Terminal block markers White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161124S0201 - Rev. A
9

Technical data valid for copper conductors only.
