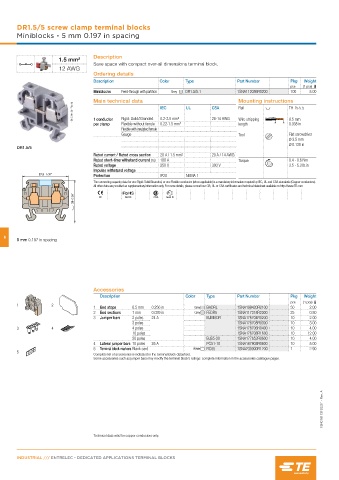

Page 408 - Entrelec Terminal Blocks Master Catalog

DR1.5/5 screw clamp terminal blocks
Miniblocks - 5 mm 0.197 in spacing

Description
1.5 mm²
Save space with compact over-all dimensions terminal block.
12 AWG
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Miniblocks Feed-through with partition Grey DR1.5/5.1 1SNA112086R0200 100 5.00
Main technical data Mounting instructions
1SNC161301F0014 IEC UL CSA Rail TH 15-5.5

1 conductor
0.335 in
Flexible without ferrule
0.22-1.5 mm²
per clamp Rigid: Solid/Stranded 0.2-2.5 mm² 28-14 AWG Wire stripping 8.5 mm
length
Flexible with insulated ferrule
Gauge Tool Flat screwdriver
Ø 3.5 mm
Ø 0.138 in
DR1.5/5
Rated current / Rated cross section 20 A / 1.5 mm² 20 A / 14 AWG
Rated short-time withstand current (1s) 180 A Torque 0.4 - 0.6 Nm
Rated voltage 250 V 300 V 3.5 - 5.3 lb.in
Impulse withstand voltage
27.5 1.08"
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
25 0.98" CE RoHS CSA Gost R

6
5 mm 0.197 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 6.5 mm 0.256 in Grey BADRL 1SNA199420R2100 50 2.00
2 End sections 1 mm 0.039 in Grey FEDR5 1SNA117318R2300 25 0.80
3 Jumper bars 2 poles 24 A BJMI5DR 1SNA176704R0200 10 2.00
3 poles 1SNA176705R0300 10 3.00
3 4 4 poles 1SNA176706R0400 10 4.00
10 poles 1SNA176708R1600 10 12.00
20 poles BJS5-20 1SNA177652R0600 10 4.00
4 Lateral jumper bars 10 poles 25 A PC51-10 1SNA167908R0600 10 5.00
5 Terminal block markers Blank card White RC55 1SNA230000R1200 1 2.90
5
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC161131S0201 - Rev. A

Technical data valid for copper conductors only.
