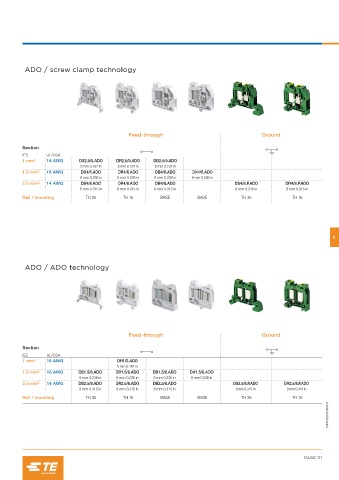

Page 403 - Entrelec Terminal Blocks Master Catalog
P. 403
ADO / screw clamp technology
Feed-through Ground
Section
IEC UL/CSA
1 mm² 18 AWG DS2.5/5.ADO DR2.5/5.ADO DB2.5/5.ADO
5 mm 0.197 in 5 mm 0.197 in 5 mm 0.197 in
1.5 mm² 16 AWG DS4/6.ADO DR4/6.ADO DB4/6.ADO DH4/6.ADO
6 mm 0.236 in 6 mm 0.236 in 6 mm 0.236 in 6 mm 0.236 in
2.5 mm² 14 AWG DS4/8.ADO DR4/8.ADO DB4/8.ADO DS4/8.P.ADO DR4/8.P.ADO
8 mm 0.315 in 8 mm 0.315 in 8 mm 0.315 in 8 mm 0.315 in 8 mm 0.315 in
Rail / mounting TH 35 TH 15 BASE BASE TH 35 TH 15
6
ADO / ADO technology
Feed-through Ground
Section
IEC UL/CSA
1 mm² 18 AWG DR1/5.ADO
5 mm 0.197 in
1.5 mm² 16 AWG DS1.5/6.ADO DR1.5/6.ADO DB1.5/6.ADO DH1.5/6.ADO
6 mm 0.236 in 6 mm 0.236 in 6 mm 0.236 in 6 mm 0.236 in
2.5 mm² 14 AWG DS2.5/8.ADO DR2.5/8.ADO DB2.5/8.ADO DS2.5/8.P.ADO DR2.5/8.P.ADO
8 mm 0.315 in 8 mm 0.315 in 8 mm 0.315 in 8 mm 0.315 in 8 mm 0.315 in
Rail / mounting TH 35 TH 15 BASE BASE TH 35 TH 15
1SNC160061S0201
PAGE 111
