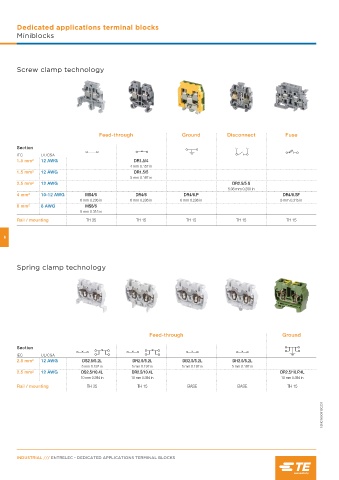

Page 402 - Entrelec Terminal Blocks Master Catalog

Dedicated applications terminal blocks
Miniblocks

Screw clamp technology

Feed-through Ground Disconnect Fuse

Section
IEC UL/CSA
1.5 mm² 12 AWG DR1.5/4
4 mm 0.157 in
1.5 mm² 12 AWG DR1.5/5
5 mm 0.197 in
2.5 mm² 12 AWG DR2.5/5 S
5.08 mm 0.200 in
4 mm² 10-12 AWG MS4/6 DR4/6 DR4/6.P DR4/8.SF
6 mm 0.236 in 6 mm 0.236 in 6 mm 0.236 in 8 mm 0.315 in
6 mm² 8 AWG MS6/8
8 mm 0.315 in
Rail / mounting TH 35 TH 15 TH 15 TH 15 TH 15

6

Spring clamp technology

Feed-through Ground

Section
IEC UL/CSA
2.5 mm² 12 AWG DS2.5/5.2L DR2.5/5.2L DB2.5/5.2L DH2.5/5.2L
5 mm 0.197 in 5 mm 0.197 in 5 mm 0.197 in 5 mm 0.197 in
2.5 mm² 12 AWG DS2.5/10.4L DR2.5/10.4L DR2.5/10.P.4L
10 mm 0.394 in 10 mm 0.394 in 10 mm 0.394 in
Rail / mounting TH 35 TH 15 BASE BASE TH 15

1SNC160061S0201
