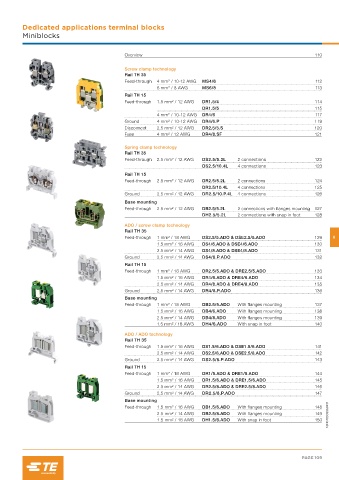

Dedicated applications terminal blocks
Miniblocks

Overview 110

Screw clamp technology
Rail TH 35
Feed-through 4 mm² / 10-12 AWG MS4/6 112
6 mm² / 8 AWG MS6/8 113
Rail TH 15
Feed-through 1.5 mm² / 12 AWG DR1.5/4 114
DR1.5/5 115
4 mm² / 10-12 AWG DR4/6 117
Ground 4 mm² / 10-12 AWG DR4/6.P 119
Disconnect 2.5 mm² / 12 AWG DR2.5/5.S 120
Fuse 4 mm² / 12 AWG DR4/8.SF 121

Spring clamp technology
Rail TH 35
Feed-through 2.5 mm² / 12 AWG DS2.5/5.2L 2 connections 122
DS2.5/10.4L 4 connections 123
Rail TH 15
Feed-through 2.5 mm² / 12 AWG DR2.5/5.2L 2 connections 124
DR2.5/10.4L 4 connections 125
Ground 2.5 mm² / 12 AWG DR2.5/10.P.4L 4 connections 126
Base mounting
Feed-through 2.5 mm² / 12 AWG DB2.5/5.2L 2 connections with flanges mounting 127
DH2.5/5.2L 2 connections with snap in foot 128
ADO / screw clamp technology
Rail TH 35
Feed-through 1 mm² / 18 AWG DS2.5/5.ADO & DSE2.5/5.ADO 129 6
1.5 mm² / 16 AWG DS4/6.ADO & DSE4/6.ADO 130
2.5 mm² / 14 AWG DS4/8.ADO & DSE4/8.ADO 131
Ground 2.5 mm² / 14 AWG DS4/8.P.ADO 132
Rail TH 15
Feed-through 1 mm² / 18 AWG DR2.5/5.ADO & DRE2.5/5.ADO 133
1.5 mm² / 16 AWG DR4/6.ADO & DRE4/6.ADO 134
2.5 mm² / 14 AWG DR4/8.ADO & DRE4/8.ADO 135
Ground 2.5 mm² / 14 AWG DR4/8.P.ADO 136
Base mounting
Feed-through 1 mm² / 18 AWG DB2.5/5.ADO With flanges mounting 137
1.5 mm² / 16 AWG DB4/6.ADO With flanges mounting 138
2.5 mm² / 14 AWG DB4/8.ADO With flanges mounting 139
1.5 mm² / 16 AWG DH4/6.ADO With snap in foot 140
ADO / ADO technology
Rail TH 35
Feed-through 1.5 mm² / 16 AWG DS1.5/6.ADO & DSE1.5/6.ADO 141
2.5 mm² / 14 AWG DS2.5/8.ADO & DSE2.5/8.ADO 142
Ground 2.5 mm² / 14 AWG DS2.5/8.P.ADO 143
Rail TH 15
Feed-through 1 mm² / 18 AWG DR1/5.ADO & DRE1/5.ADO 144
1.5 mm² / 16 AWG DR1.5/6.ADO & DRE1.5/6.ADO 145
2.5 mm² / 14 AWG DR2.5/8.ADO & DRE2.5/8.ADO 146
Ground 2.5 mm² / 14 AWG DR2.5/8.P.ADO 147
Base mounting
1SNC160099S0201
Feed-through 1.5 mm² / 16 AWG DB1.5/6.ADO With flanges mounting 148
2.5 mm² / 14 AWG DB2.5/8.ADO With flanges mounting 149
1.5 mm² / 16 AWG DH1.5/6.ADO With snap in foot 150

PAGE 109
