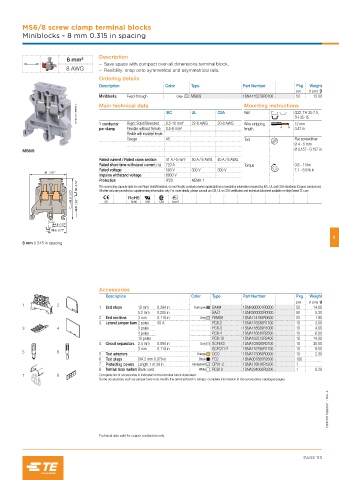

Page 405 - Entrelec Terminal Blocks Master Catalog

MS6/8 screw clamp terminal blocks
Miniblocks - 8 mm 0.315 in spacing

Description
6 mm²
– Save space with compact over-all dimensions terminal block,
8 AWG – Flexibility: snap onto symmetrical and asymmetrical rails.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Miniblocks Feed-through Grey MS6/8 1SNA115278R0100 50 12.00
1SNC161148F0014 Main technical data IEC UL CSA Mounting instructions
Rail
G32, TH 35-7.5,
TH 35-15
1 conductor
0.5-6 mm²
Flexible without ferrule
length
0.47 in
per clamp Rigid: Solid/Stranded 0.5-10 mm² 22-8 AWG 20-8 AWG Wire stripping 12 mm
Flexible with insulated ferrule
Gauge A5 Tool Flat screwdriver
Ø 4 - 5 mm
Ø 0.157 - 0.197 in
MS6/8
Rated current / Rated cross section 41 A / 6 mm² 50 A / 8 AWG 40 A / 8 AWG
Rated short-time withstand current (1s) 720 A Torque 0.8 - 1 Nm
Rated voltage 500 V 300 V 300 V 7.1 - 8.9 lb.in
41 1.61"
Impulse withstand voltage 6000 V NEMA 1
Protection
IP20
54 2.12" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
51.5 2.03"
46.5 1.83" CE RoHS USR CSA Gost R
14.5 0.57"
19.5 0.77"
6
8 mm 0.315 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 3 mm 0.118 in Grey FEMS8 1SNA114195R0600 25 1.90
3 Lateral jumper bars 2 poles 50 A PC8-2 1SNA116538R1700 10 3.00
3 4 3 poles PC8-3 1SNA116539R1000 10 4.00
4 poles PC8-4 1SNA116540R2500 10 6.00
10 poles PC8-10 1SNA163313R2400 10 14.00
4 Circuit separators 2.4 mm 0.094 in Grey SCFEX3 1SNA103620R0100 10 30.00
3 mm 0.118 in SCFCV1-2 1SNA116795R1100 10 8.00
5 6
5 Test adapters Orange DCO 1SNA173060R0000 10 2.30
6 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
7 Protecting covers Length 1 m 39 in Transparent CPV1-2 1SNA176816R1200 1
8 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
7 8 Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC161139S0201 - Rev. A

Technical data valid for copper conductors only.
