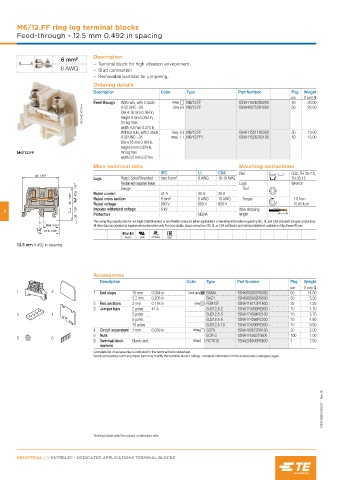

Page 394 - Entrelec Terminal Blocks Master Catalog

M6/12.FF ring lug terminal blocks
Feed-through - 12.5 mm 0.492 in spacing

Description
6 mm²
– Terminal block for high vibration environment,
8 AWG – Stud connection
– Removable partition for jumpering.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Feed-through With nuts, with 2 studs White M6/12.FF 1SNA115263R2200 50 20.00
1SNC168010F0014 DIA 4.16 mm 0.164 in,
50
Grey
M6/12.FF
20.00
8-32 UNC - 2A
1SNA400753R1000
height 9 mm 0.354 in,
for lug max
width 9.5 mm 0.374 in
Without nuts, with 2 studs Grey M6/12.FF 1SNA115511R0300 50 13.00
8-32 UNC - 2A White M6/12.FF1 1SNA115262R2100 50 13.00
DIA 4.16 mm 0.164 in,
height 9 mm 0.354 in,
M6/12.FF for lug max
width 9.5 mm 0.374 in
Main technical data Mounting instructions
IEC UL CSA Rail G32, TH 35-7.5,
43 1.69"
Lugs Rigid: Solid/Stranded max 6 mm² 8 AWG 18-10 AWG Lugs TH 35-15
Flexible with JOTVMBUFE GFSSVMF
Wrench
42.5 1.67" Rated current Gauge 41 A 40 A 25 A Tool
40 1.58" Rated cross section 6 mm² 8 AWG 10 AWG Torque 1.8 N.m
800 V
Rated voltage
600 V
15.65 lb.in
600 V
35 1.38" Protection NEMA length
5 Impulse withstand voltage 8 kV Wire stripping
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
16.5 0.65" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
21.5 0.85"
C US
RoHS USR cCSAus EAC
12.5 mm 0.492 in spacing
Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 3 mm 0.118 in Grey FEM12F 1SNA116713R1600 25 1.25
3 Jumper bars 2 poles 41 A BJS12.5-2 1SNA174393R2000 10 1.70
3 4 3 poles BJS12.5-3 1SNA174394R2100 10 2.70
5 poles BJS12.5-5 1SNA174395R2200 10 4.80
10 poles BJS12.5-10 1SNA174396R2300 10 9.90
4 Circuit separators 1 mm 0.039 in White SCF9 1SNA103672R0100 20 2.00
5 Nuts ECR-3 1SNA175263T0600 100 1.00
5 6
6 Terminal block Blank card White RCT810 1SNA236500R0600 1 7.60
markers
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC168002S0201 - Rev. B

Technical data valid for copper conductors only.
