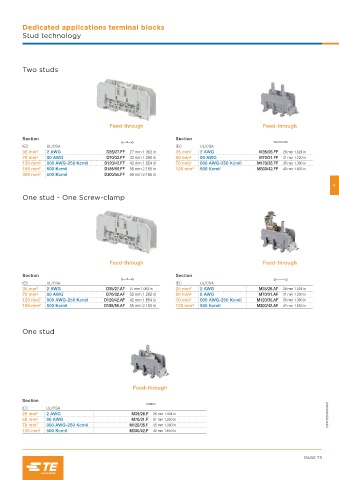

Page 365 - Entrelec Terminal Blocks Master Catalog
P. 365
Dedicated applications terminal blocks
Stud technology
Two studs
Feed-through Feed-through
Section Section
IEC UL/CSA IEC UL/CSA
35 mm² 2 AWG D35/27.FF 27 mm 1.063 in 25 mm² 2 AWG M35/26.FF 26 mm 1.024 in
70 mm² 00 AWG D70/32.FF 32 mm 1.260 in 50 mm² 00 AWG M70/31.FF 31 mm 1.220 in
120 mm² 000 AWG-250 Kcmil D120/42.FF 42 mm 1.654 in 70 mm² 000 AWG-250 Kcmil M120/35.FF 35 mm 1.380 in
185 mm² 500 Kcmil D185/55.FF 55 mm 2.165 in 120 mm² 500 Kcmil M300/42.FF 42 mm 1.653 in
300 mm² 500 Kcmil D300/55.FF 55 mm 2.165 in
4
One stud - One Screw-clamp
Feed-through Feed-through
Section Section
IEC UL/CSA IEC UL/CSA
35 mm² 2 AWG D35/27.AF 27 mm 1.063 in 25 mm² 2 AWG M35/26.AF 26 mm 1.024 in
70 mm² 00 AWG D70/32.AF 32 mm 1.260 in 50 mm² 0 AWG M70/31.AF 31 mm 1.220 in
120 mm² 000 AWG-250 Kcmil D120/42.AF 42 mm 1.654 in 70 mm² 000 AWG-250 Kcmil M120/35.AF 35 mm 1.380 in
185 mm² 500 Kcmil D185/55.AF 55 mm 2.165 in 120 mm² 500 Kcmil M300/42.AF 42 mm 1.653 in
One stud
Feed-through
Section
IEC UL/CSA
25 mm² 2 AWG M35/26.F 26 mm 1.024 in 1SNC165029S0201
50 mm² 00 AWG M70/31.F 31 mm 1.220 in
70 mm² 000 AWG-250 Kcmil M120/35.F 35 mm 1.380 in
120 mm² 500 Kcmil M300/42.F 42 mm 1.653 in
PAGE 73
