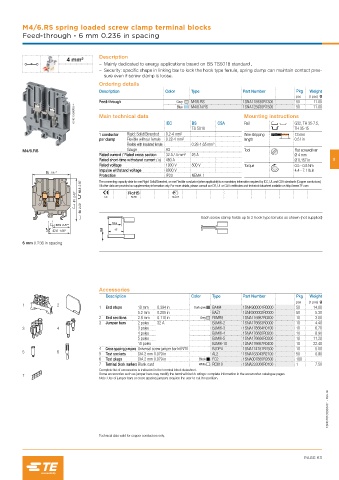

Page 355 - Entrelec Terminal Blocks Master Catalog

M4/6.RS spring loaded screw clamp terminal blocks
Feed-through - 6 mm 0.236 in spacing

Description
4 mm²
– Mainly dedicated to energy applications based on BS TS5018 standard ,
– Security: specific shape in linking bar to lock the hook type ferrule, spring clamp can maintain contact pres-
sure even if screw clamp is loose.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Feed-through Grey M4/6.RS 1SNA115930R1300 50 11.00
1SNC161086F0014 Main technical data Mounting instructions
50
11.00
1SNA125930R1500
M4/6.N.RS
Blue
IEC
BS
TS 5018 CSA Rail G32, TH 35-7.5,
TH 35-15
1 conductor Rigid: Solid/Stranded 0.2-4 mm² Wire stripping 13 mm
per clamp Flexible without ferrule 0.22-4 mm² length 0.51 in
Flexible with insulated ferrule 0.28-1.65 mm²
M4/6.RS Gauge A3 Tool Flat screwdriver
Rated current / Rated cross section 32 A / 4 mm² 25 A Ø 4 mm
Rated short-time withstand current (1s) 480 A Ø 0.157 in 3
Rated voltage 1000 V 500 V Torque 0.5 - 0.8 Nm
Impulse withstand voltage 8000 V 4.4 - 7.1 lb.in
50 1.97"
Protection IP20 NEMA 1
63.5 2.50" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
61 2.40" CE RoHS Gost R
56 2.20"
Each screw clamp holds up to 2 hook type ferrules as shown (not supplied)
22.5 0.87"
27.5 1.08"

6 mm 0.236 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2.8 mm 0.110 in Grey FEMR8 1SNA116987R0200 10 3.00
3 Jumper bars 2 poles 32 A BJMI6-2 1SNA176663R0000 10 4.40
3 4 3 poles BJMI6-3 1SNA176664R0100 10 6.70
4 poles BJMI6-4 1SNA176665R0200 10 8.90
5 poles BJMI6-5 1SNA176666R0300 10 11.20
10 poles BJMI6-10 1SNA176667R0400 10 22.40
4 Cross spacing jumpers Universal screw jumper bar kit N°IV BJDP4 1SNA174781R2500 10 5.00
5 6
5 Test sockets DIA 2 mm 0.079 in AL2 1SNA163043R2100 50 0.90
6 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
7 Terminal block markers Blank card White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
7 Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
Note: Use of jumper bars or cross spacing jumpers requires the user to cut the partition.

1SNC161056S0201 - Rev. B

Technical data valid for copper conductors only.
