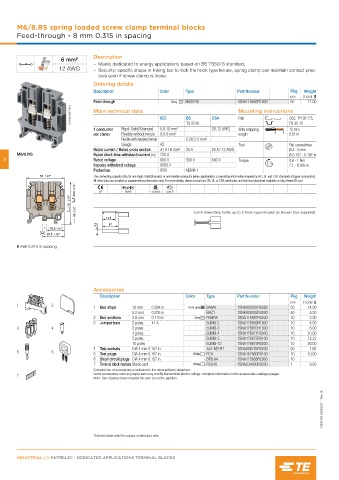

M6/8.RS spring loaded screw clamp terminal blocks
Feed-through - 8 mm 0.315 in spacing

Description
6 mm²
– Mainly dedicated to energy applications based on BS TS5018 standard,
12 AWG – Security: specific shape in linking bar to lock the hook type ferrule, spring clamp can maintain contact pres-
sure even if screw clamp is loose.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Feed-through Grey M6/8.RS 1SNA115685R1200 50 17.00
1SNC161083F0014 Main technical data IEC BS CSA Mounting instructions

Rail
G32, TH 35-7.5,
13 mm
1 conductor Rigid: Solid/Stranded 0.5-10 mm² TS 5018 20-12 AWG Wire stripping TH 35-15
per clamp Flexible without ferrule 0.5-6 mm² length 0.51 in
Flexible with insulated ferrule 0.28-2.5 mm²
Gauge A5 Tool Flat screwdriver
Rated current / Rated cross section 41 A / 6 mm² 25 A 25 A / 12 AWG Ø 4 - 5 mm
M6/8.RS Rated short-time withstand current (1s) 720 A Ø 0.157 - 0.197 in
3 Rated voltage 800 V 500 V 600 V Torque 0.8 - 1 Nm
Impulse withstand voltage 8000 V 7.1 - 8.9 lb.in
Protection IP20 NEMA 1
50 1.97" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
63.5 2.50" CE RoHS cCSAus Gost R
US
C
61 2.40"
56 2.20" Each screw clamp holds up to 2 hook type ferrules as shown (not supplied)

22.5 0.87"
27.5 1.08"

8 mm 0.315 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2.8 mm 0.110 in Grey FEMR8 1SNA116987R0200 10 3.00
3 Jumper bars 2 poles 41 A BJMI8-2 1SNA176669R1600 10 4.50
3 4 3 poles BJMI8-3 1SNA176670R1300 10 6.00
4 poles BJMI8-4 1SNA176671R0000 10 10.00
5 poles BJMI8-5 1SNA176672R0100 10 12.22
10 poles BJMI8-10 1SNA176673R0200 10 20.00
4 Test sockets DIA 4 mm 0.157 in AL4-M3-R1 1SNA206722R0200 50 1.62
5 6
5 Test plugs DIA 4 mm 0.157 in White FC4 1SNA167860R0100 10 10.00
6 Short circuit plugs DIA 4 mm 0.157 in BP8.A4 1SNA173888R2000 10
7 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
7 Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
Note: Use of jumper bars requires the user to cut the partition.

1SNC161152S0201 - Rev. B

Technical data valid for copper conductors only.
