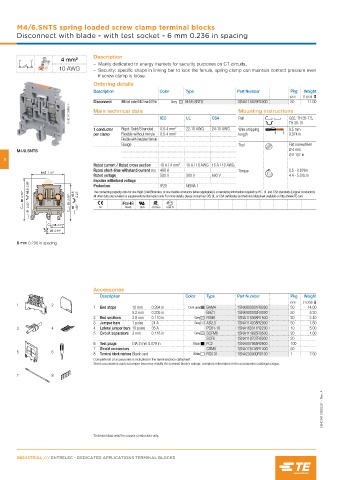

Page 358 - Entrelec Terminal Blocks Master Catalog

M4/6.SNTS spring loaded screw clamp terminal blocks
Disconnect with blade - with test socket - 6 mm 0.236 in spacing

Description
4 mm²
– Mainly dedicated to energy markets for security purposes on CT circuits,
10 AWG – Security: specific shape in linking bar to lock the ferrule, spring clamp can maintain contact pressure even
if screw clamp is loose.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Disconnect With test socket DIA 2 mm 0.079 in Grey M4/6.SNTS 1SNA115229R2000 50 11.00
1SNC161152F0014 Main technical data IEC UL CSA Mounting instructions

G32, TH 35-7.5,
Rail
1 conductor Rigid: Solid/Stranded 0.5-4 mm² 22-10 AWG 24-10 AWG Wire stripping TH 35-15
9.5 mm
per clamp Flexible without ferrule 0.5-4 mm² length 0.374 in
Flexible with insulated ferrule
Gauge Tool Flat screwdriver
M4/6.SNTS Ø 4 mm
Ø 0.157 in
3
Rated current / Rated cross section 10 A / 4 mm² 10 A / 10 AWG 15 A / 10 AWG
Rated short-time withstand current (1s) 480 A Torque 0.5 - 0.6 Nm
44.5 1.75"
Rated voltage 500 V 300 V 600 V 4.4 - 5.3 lb.in
Impulse withstand voltage
68.5 2.69" Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
66 2.59" 53 2.09" 55.5 2.23" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
61 2.40" 48 1.89" CE RoHS USR cCSAus Gost R
C
US

18 0.71"
23 0.91"

6 mm 0.236 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2.8 mm 0.110 in Grey FEM6 1SNA118368R1600 20 2.40
3 Jumper bars 1 poles 24 A Grey AD2.5 1SNA114205R2000 50 1.60
3 4 4 Lateral jumper bars 10 poles 35 A PC61-10 1SNA163311R2200 10 5.00
5 Circuit separators 3 mm 0.118 in Grey SCFM6 1SNA114825R0500 20 4.00
SCF6 1SNA118707R0300 20
6 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
7 Shield connectors CBM5 1SNA178745R1400 50
5 6
8 Terminal block markers Blank card White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
7 8

1SNC161138S0201 - Rev. A

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - DEDICATED APPLICATIONS TERMINAL BLOCKS
