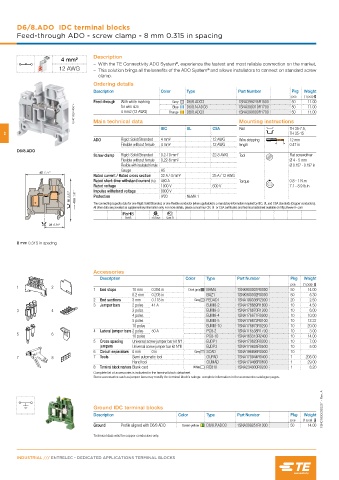

D6/8.ADO IDC terminal blocks
Feed-through ADO - screw clamp - 8 mm 0.315 in spacing

Description
4 mm²
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
12 AWG – This solution brings all the benefits of the ADO System and allows installators to connect on standard screw
®
clamp.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Feed-through With white marking Grey D6/8.ADO3 1SNA399245R1500 50 11.00
1SNC163074F0014 4 mm2 (12 AWG) Orange D6/8.ADO3 1SNA399800R1700 50 11.00
for wire size
1SNA399319R1700
50
11.00
D6/8.N.ADO3
Blue
Main technical data
Rail
IEC UL CSA Mounting instructions
TH 35-7.5,
2 TH 35-15
ADO Rigid: Solid/Stranded 4 mm² 12 AWG Wire stripping 12 mm
Flexible without ferrule 4 mm² 12 AWG length 0.47 in
D6/8.ADO
Screw clamp Rigid: Solid/Stranded 0.2-10 mm² 22-8 AWG Tool Flat screwdriver
Flexible without ferrule 0.22-6 mm² Ø 4 - 5 mm
Flexible with insulated ferrule Ø 0.157 - 0.197 in
Gauge A5
45 1.77"
Rated current / Rated cross section 32 A / 4 mm² 25 A / 12 AWG
Rated short-time withstand current (1s) 480 A Torque 0.8 - 1 N.m
Rated voltage 1000 V 600 V 7.1 - 8.9 lb.in
56 2.20" 48.5 1.91" Impulse withstand voltage 8000 V NEMA 1
Protection
IP20
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
C US
RoHS cCSAus Gost R
23 0.91"
8 mm 0.315 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 3 mm 0.118 in Grey FEDAD1 1SNA199336R2000 20 2.50
3 Jumper bars 2 poles 41 A BJMI8-2 1SNA176669R1600 10 4.50
3 4 3 poles BJMI8-3 1SNA176670R1300 10 6.00
4 poles BJMI8-4 1SNA176671R0000 10 10.00
5 poles BJMI8-5 1SNA176672R0100 10 12.22
10 poles BJMI8-10 1SNA176673R0200 10 20.00
4 Lateral jumper bars 2 poles 50 A PC8-2 1SNA116538R1700 10 3.00
5 6
10 poles PC8-10 1SNA163313R2400 10 14.00
5 Cross spacing Universal screw jumper bar kit N°I BJDP1 1SNA179623R0300 10 7.00
jumpers Universal screw jumper bar kit N°III BJDP3 1SNA179625R0500 10 5.00
6 Circuit separators 0 mm 0 in Grey SCAD 1SNA196896R0000 10
7 8 7 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
8 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC163006S0201 - Rev. A

Ground IDC terminal blocks
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Ground Profile aligned with D6/8 ADO Green-yellow D6/8.P.ADO3 1SNA399251R1300 50 14.00
Technical data valid for copper conductors only.
